PEM-200
Controller for web alignment control. Used in combination with the G-series sensor and drive. It is compact and superior in cost performance. Although it has a simple function, it achieves high-response and high-precision alignment control.
- Controller
-
PEM-3000
Controller for web alignment control. Used in combination with G series sensor and drive. It is equipped with color LCD touch panel, achieving universal operability. It is normally equipped with external interface such as I/O terminal to control operation mode switch with an external controller or an analogue output terminal to monitor web status.
- Controller
-
PSM-46W series
An ultrasonic transmission-type web edge sensor. It is used for web alignment control in combination with G-series controller and drive. Due to it not being affected by web transparency, color or pattern, it is suited for edge detection of transparent body.
- Ultrasonic Edge Sensor
-
PSM-75W series
An infrared transmission-type web edge sensor. It is used for web alignment control in combination with G-series controller and drive. It is suitable for edge detection for opaque webs and unwoven fabric.
- Infrared Edge Sensor
-
PGM-15
Used when carrying out alignment control in the intermediate process of web transport. Used in combination with G-series controller and sensor. It is equipped with brushless motor and is superior in maintainability and achieves high response and high precision control. It is used for narrow web of 600m width or less and is suitable for alignment control of packaging machines and sanitary goods manufacturing machines.
- Miniature Roll Guide
-
PGMW-15
Used when carrying out alignment control in the intermediate process of web transport. Due to the built-in controller and sensor, time required for design, installation, wiring and adjustment processes are reduced for the customer, enabling ease of use. With built-in brushless motor, high maintainability, high response and high precision are achieved. It is used for narrow web of 600mm width or less, suitable for alignment control of packaging machines and sanitary goods manufacturing machines.
- Integrated Miniature Roll Guide
-
PDM-400
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with G-series controller and sensor. It has a built-in brushless motor and is superior in maintainability and achieves high response and high precision. Mass tolerance is 1000kg.
- Actuator
-
PDM-610
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with G-series controller and sensor. It has a built-in brushless motor and is superior in maintainability and achieves high response and high precision. Mass tolerance is 1500kg.
- Actuator
-
PDM-620
Actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with G-series controller and sensor. It has a built-in brushless motor and is superior in maintainability and achieves high response and high precision. Mass tolerance is 1500kg.
- Actuator
-
PDM-650
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with G-series controller and sensor. It has a built-in brushless motor and is superior in maintainability and achieves high response and high precision. Mass tolerance is 3000kg.
- Actuator
-
PW-1000
Control panel for web alignment control. It can be connected to all Q-series detectors and the drive can use all roll guides and miniature actuators. It is normally equipped with I/O terminal to control operation mode selection with an external controller.
- Control Panel
-
PW-1310
Control panel for web alignment control. It can be connected to large drives such as actuator PD-900 and motor CM-402F. It can be also connected to all Q-series detectors.
- Control Panel
-
PW-2000
Control panel for web alignment control. It can be connected to mid-size drives such as actuator PD-811 and PD-850. It can be connected to all Q-series detectors. It is normally equipped with I/O terminal to control operation mode selection with an external controller.
- Control Panel
-
PW-800
Control panel for web alignment control. The simple functions enable easy operation. It can drive all roll guides and small actuators and be connected to Q-series sensors except PS-800, PS-300 and PS-350.
- Control Panel
-
PS-261
The photoelectric reflection-type detector detects line marks and borders printed on the web. It is used for web alignment control in combination with Q-series control panel and drive.
- Reflective Detector
-
PS-270
The photoelectric reflection-type detector detects line marks and borders printed on the web. It is used for web alignment control in combination with Q-series control panel and drive. It is strong against ambient light and enables high-sensitivity detection.
- Reflective Detector
-
PS-300
A photoelectric transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. With the wide 200mm detection width, it is suited for centering control using 2 units.
- Photoelectric Edge Detector
-
PS-350
A photoelectric transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. With the wide 440mm detection width, it is suited for centering control using 2 units. Due to having approximately double the detection width of PS-300, it can adapt to various web widths without moving the detector.
- Photoelectric Edge Detector
-
PS-420
An ultrasonic transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. Due to it not being affected by the web transparency, color or pattern, it is suited for detection of transparent film.The difference between PS-420 and a similar product PS-400 is that the shaft of PS-420's mounting part is made of metal.
- Ultrasonic Edge Detector
-
PS-400( Discontinued product )
An ultrasonic transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. Due to it not being affected by the web transparency, color or pattern, it is suited for detection of transparent body.
- Ultrasonic Edge Detector
-
PS-45
An ultrasonic transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. Due to it not being affected by the web transparency, color or pattern, it is suited for the detection of a transparent body. In addition, it is more compact than PS-400, making it suitable for use in smaller spaces.
- Ultrasonic Edge Detector
-
PS-711( Discontinued product )
An infrared transmission-type web edge detector. It is used for web alignment control in combination with Q-series control panel and drive. Because it is photoelectric, it has high precision and is suitable for control of opaque body and non-woven fabric.
- Infrared Edge Detector
-
PS-800
A photoelectric transmission-type detector to detect the position of printed line marks and borders on a transparent web. It is used for web alignment control in combination with Q series control panel and drive. It is suitable for print-base control and not edge-base of web.
- Transmission-type Line Detector
-
PD-400
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 1300kg or less.
- Actuator
-
PD-400-75
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It has a larger stroke (75mm) compared to PD-400.
- Actuator
-
PD-400-1/50
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. The driving speed is one-fifth that of PD-400 and is used for high-precision requirements.
- Actuator
-
PD-710
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. The overall length is shorter than that of PD-610 and is suitable for installing in small spaces.
- Actuator
-
PD-610
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 1600 kg or less.
-
PD-620
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 1200 kg or less.
- Actuator
-
PD-620-100
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 1200 kg or less. The stroke is 100mm which is shorter than that of PD-620.
- Actuator
-
PD-650
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 3500 kg or less.
- Actuator
-
PD-650S
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It can be used in the direction of gravity and is used for alignment control for vertical transport of the web.
- Vertical Transport Actuator
-
PD-811
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 5800kg or less.
- Medium-size Actuator
-
PD-850
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 9400 kg or less.
- Medium-size Actuator
-
PD-900
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 13300 kg or less.
- Large Actuator
-
PG-10
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It is used for narrow webs of 150mm width or less.
- Small Roll Guide
-

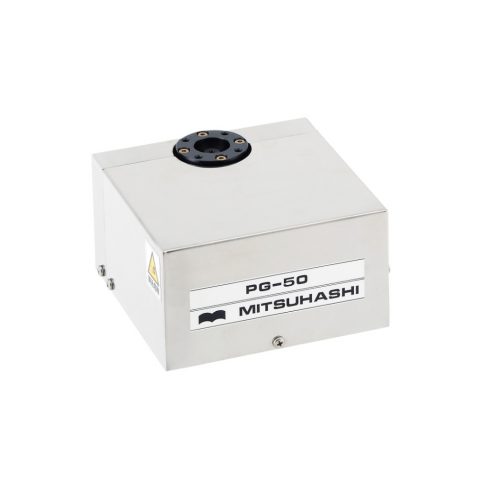

PG-50
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a cam drive and has such features as high rigidity and minimal backlash. High-precision control is made possible.
- Small Roll Guide
-
PG-80
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a cam drive and has such features as high rigidity and minimal backlash. High-precision control is made possible.
- Small Roll Guide
-
PG-100
A general-purpose offset-type roll guide used when carrying out alignment control in the intermediate process of web transport.
- Small Roll Guide
-
PG-110
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It is low in height enabling installation in a small space.
- Small Roll Guide
-
PG-800
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a ball drive and minimal backlash, enabling high-precision control.
- Small Roll Guide
-
PG-400
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It is used for web with width of 1600mm or less. It has a ball screw drive and minimal backlash, enabling high-precision control.
- Large Roll Guide
-
PG-701
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a cam drive and has such features as high rigidity and minimal backlash. High precision control is made possible.
- Mid-size Roll Guide
-
PG-301
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It is suited for a web with width of 2000 mm or less. It may be used for a high-tension web transport line.
- Large Roll Guide
-

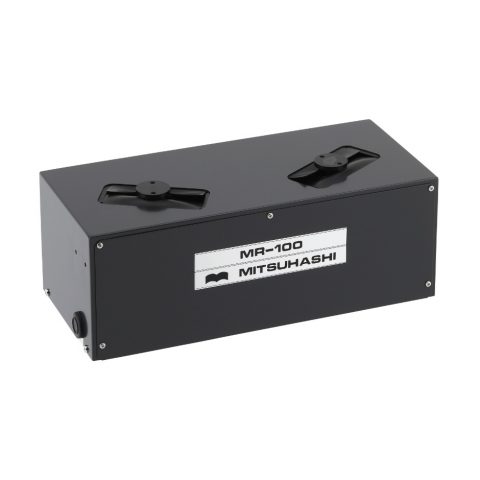

MR-100
End pivot-type roll guide used in carrying out alignment control in the intermediate process of web transport.
- End Pivot-type Miniature Roll Guide
-
MR-60
End pivot-type roll guide used in carrying out alignment control in the intermediate process of web transport.
- End Pivot-type Mid-size Roll Guide
-
MR-65
End pivot-type roll guide used in carrying out alignment control in the intermediate process of web transport.
- End Pivot-type Mid-size Roll Guide
-
MR-210
End pivot-type roll guide used in carrying out alignment control in the intermediate process of web transport.
- End Pivot-type Large Roll Guide
-
MR-250
End pivot-type roll guide used in carrying out alignment control in the intermediate process of web transport.
- End Pivot-type Large Roll Guide
-
CM-402F
Motor for alignment control. It is used in combination with PW-1310, etc. To be used when the customer designs and manufactures the driving mechanism.
- Control Motor
-
PE-700
Preamplifier for alignment control. It is used in combination with motor driver PC-900 or PC-930.
- Preamplifier
-
PC-900
DC motor driver used in combination with preamplifier PE-700. It drives miniature actuators.
- DC Motor Driver
-
PC-930
DC motor driver used in combination with preamplifier PE-700. It drives mid-size to large actuators.
- DC Motor Driver
-
PCS-1000
AC servo motor driver used in combination with PW-1000. High-precision control may be achieved in combination with servo motor-mounted actuators.
- AC Servo Motor Driver
-
PDS-610
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with PW-1000 and PCS-1000. It is used for web rolls and trolleys with a total weight of 1500 kg or less. Mounted with AC servo motor, high-precision control is possible.
- AC Servo Actuator
-
PDS-400
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with PW-1000 and PCS-1000. It is used for web rolls and trolleys with a total weight of 1000 kg or less. Mounted with AC servo motor, high-precision control is possible.
- AC Servo Actuator
-
PGS-400
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a ball screw drive and is characterized by minimal backlash. Mounted with AC servo motor, high-precision control is possible.
- AC Servo Large Roll Guide
-
PGS-701
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a cam drive and is characterized by high rigidity and minimal backlash. Mounted with AC servo motor, high-precision control is possible.
- AC Servo Mid-size Roll Guide
-
PW-1310-3
Control panel for web alignment control. It can be connected to mid-size drives such as actuator PD-811 and PD-850. It can be also connected to all Q-series detectors.
- Control Panel
-
CM-412F
Motor for alignment control. It is used in combination with PW-1310, etc. To be used when the customer designs and manufactures the driving mechanism.
- Control Motor
-
PD-100
An actuator for moving detectors.
- Detector-moving Actuator
-
PD-200
An actuator for moving detectors. It is used for bonding control and centering control.
- Detector-moving Actuator
-
PT-1000
Remote operation box for PW-1000, PW-2000 and PW-1310. It is used for operation near a detector or an actuator.
- Remote Box
-
PT-800
Remote operation box for PW-800. It is used for operation near a detector or an actuator.
- Remote Box
-
PZ-110
Holder for Q-series detector. By turning the dial, minute adjustments may be made on the detector’s position. It is mainly used for transmission-type detectors such as PS-400 and PS-711b.
- Detector Holder
-
PZ-121
Holder for Q-series detector. By turning the dial, minute adjustments may be made on the detector’s position. It is mainly used for reflective-type detectors. In addition, by changing the detector mounting portion, it can be adapted to a transmission-type detector (optional feature).
- Detector Holder
-
PSM-270
Photoelectric reflection-type sensor for detecting printed line marks and borders on the web. It is used for alignment control of the web in combination with G-series controller and drive. Strong against ambient light, high-sensitivity detection is possible.
- Reflective-type Sensor
-
PSM-1500
Mounted with a color linear image sensor, it detects the position of the printed line marks and borders on the web through image processing. It is used for web alignment control in combination with G-series controller and drive.
- Reflective-type Sensor
-
PSM-2000
Mounted with a color area image sensor, it uses image processing to detect the position of printed line marks and borders on the web as well as intermittent character patterns. It is used for web alignment control in combination with a dedicated controller or a drive.
- Reflective-type Sensor
-
PTM-100
Remote operation box for G-series controllers. It is used for operation near a detector or an actuator.
- Remote Box
-
PXM-100
Extension I/O module for G-series controllers. It is mainly used to control operation mode switching, etc. from an external controller in combination with PEM-200 which does not have an external control terminal.
- Extension I/O Module
-
PAM-10
G-series analog input module. It is used when using an alignment control sensor that is not our company product.
- Analog Input Module
-
PZM-100
Holder for G-series sensor. By turning the dial, minute adjustments may be made on the detector’s position. Sensor position is highly flexible and it is used mainly for reflective-type sensors.
- Sensor Holder
-
PZM-200
Holder for G-series sensor. By turning the dial, minute adjustments may be made on the detector’s position. It is used mainly for transmission-type sensors.
- Sensor Holder
-
PCM-D40-BP
DC motor driver. It is used in combination with PEM-3000 to control Q-series drives.
- DC Motor Driver
-
PCM-D40-NL
DC motor driver. It is used in combination with G-series controllers to control Q-series drives.
- DC Motor Driver
-
PGM-400
Offset-type roll guide used in carrying out alignment control in the intermediate process of web transport. It is suitable for webs of 3000mm width or less. It has a ball screw drive with minimal backlash, enabling high-precision control.
- Large Roll Guide
