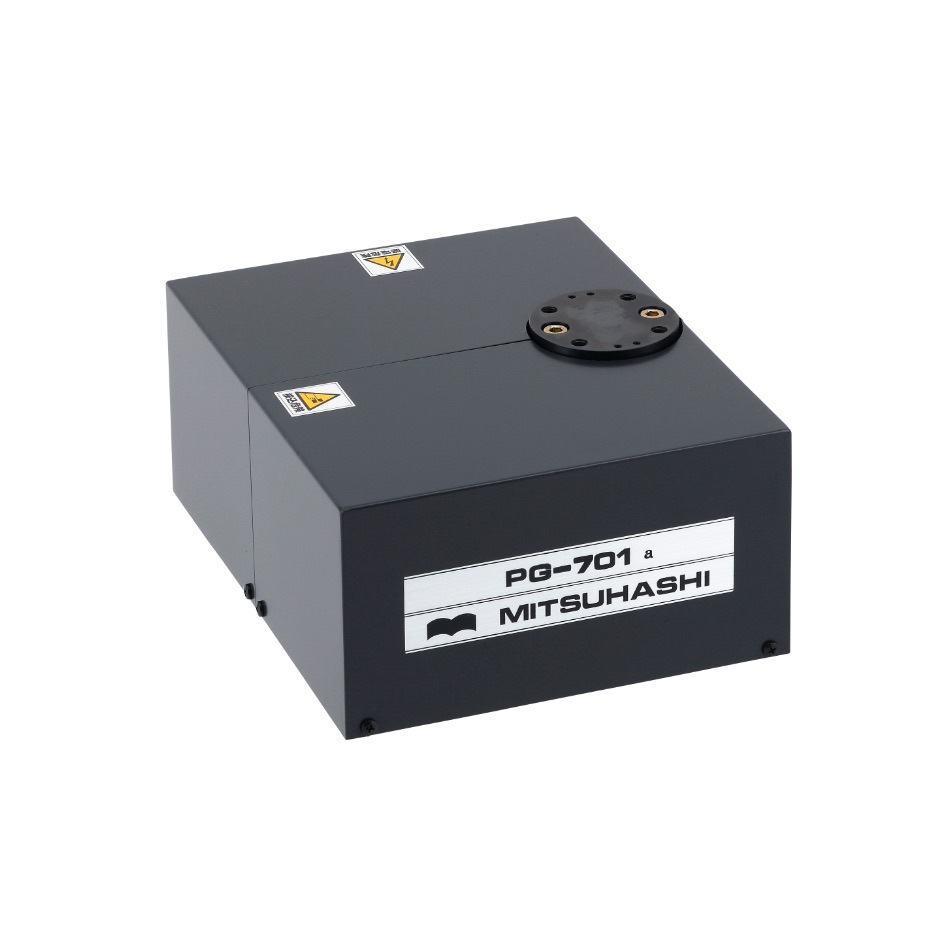

PG-701
Mid-size Roll Guide
- #Mid-size Roll Guide
An offset-type roll guide used when carrying out alignment control in the intermediate process of web transport. It has a cam drive and has such features as high rigidity and minimal backlash. High precision control is made possible.

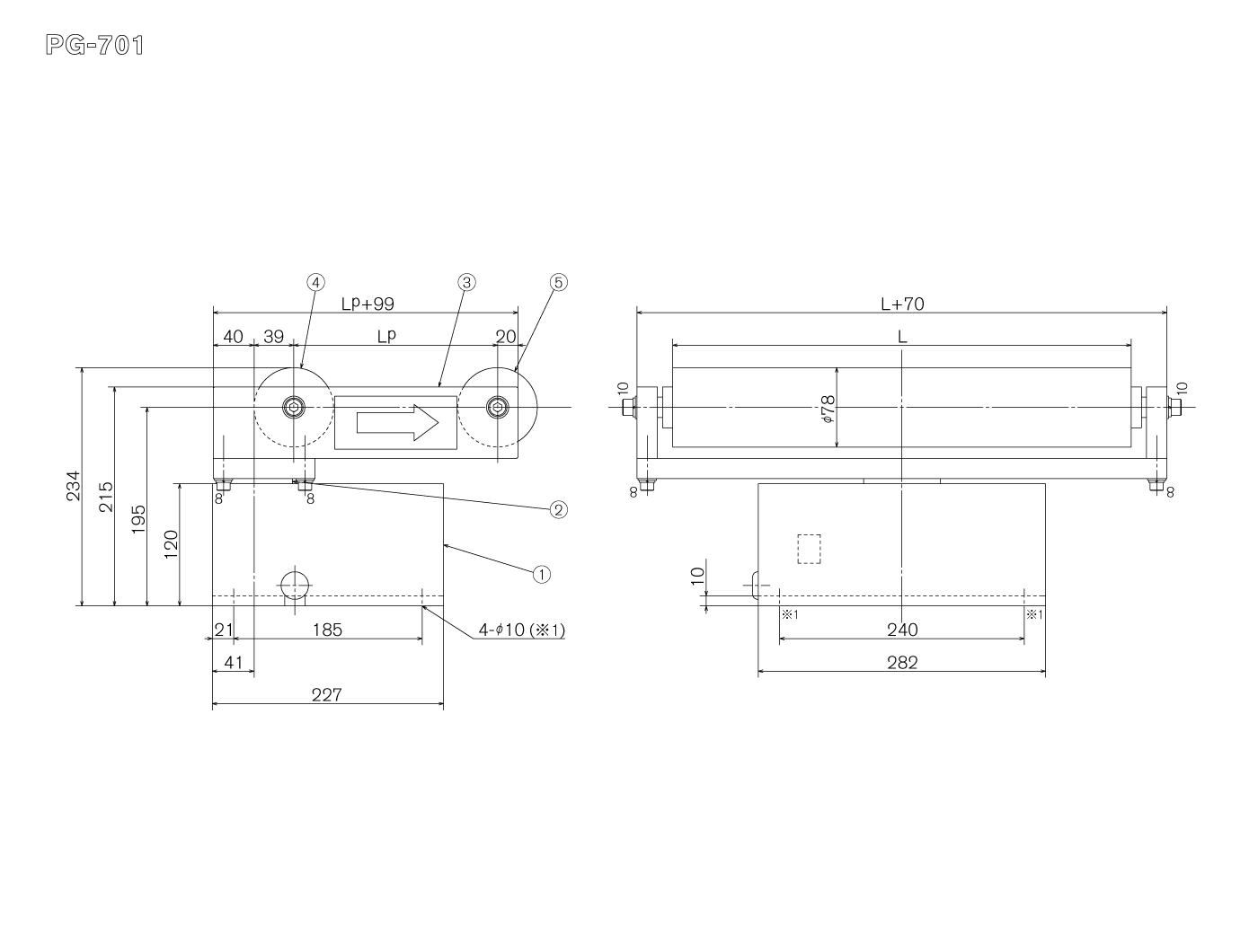

Drawing
Features
- Suitable for position control during sheet processing line.
- Optimal for materials prone to permanent distortion or which tear easily
Control process is carried out by twisting the web at the front-side and end-side of the roll guide. This alleviates the tension difference to both ends of the web, thereby making it suitable for web control of materials prone to permanent distortion or which tear easily.
Specification
| DC motor | DC24V 0.7A |
|---|---|
| Correction speed | 7mm/s (when roll span is 300mm) |
| Control volume | ±25mm (when roll span is 125mm) |
| Maximum sheet speed | 150m/min |
| Roll surface length | 300 – 600mm |
| Roll diameter | Φ78 (standard) |
| Roll span | 180～400mm |
