PZM-100

Sensor Holder

  • #Sensor Holder

Holder for G-series sensor. By turning the dial, minute adjustments may be made on the detector’s position. Sensor position is highly flexible and it is used mainly for reflective-type sensors.

PZM-100

Drawing

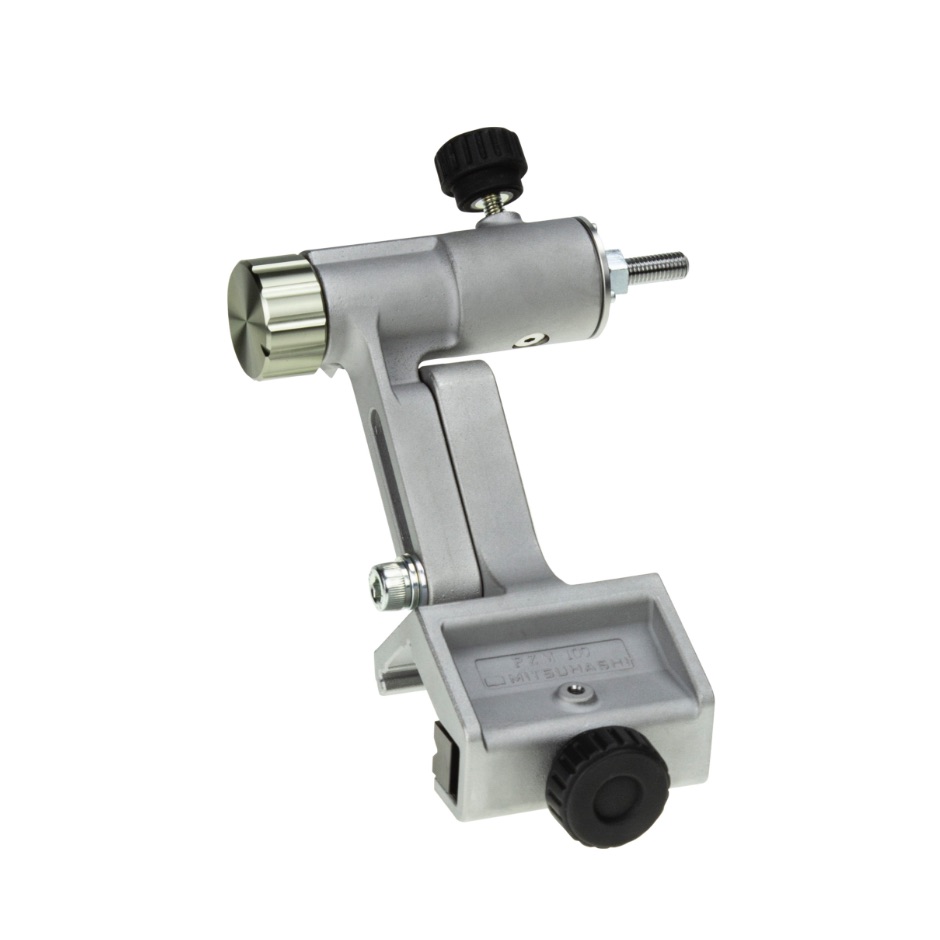

①Right-left fine-tuning handle　② Holder-fixing handle　③ Angle adjustment screw　④Position adjusting arm ⑤Fine-tuning fixing handle 　⑥ Sensor-fixing nut

Catalog

Features

  • To be mounted on □25 square bar. There is no positional displacement due to it being fixed diagonally.
  • Holder placement and removal is possible even if the square bar is supported on both ends.

Specification

Stroke 30mm
Feed rate 1mm/revolution
