PD-620

Actuator

  • #Actuator

An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 1200 kg or less.

PD-620

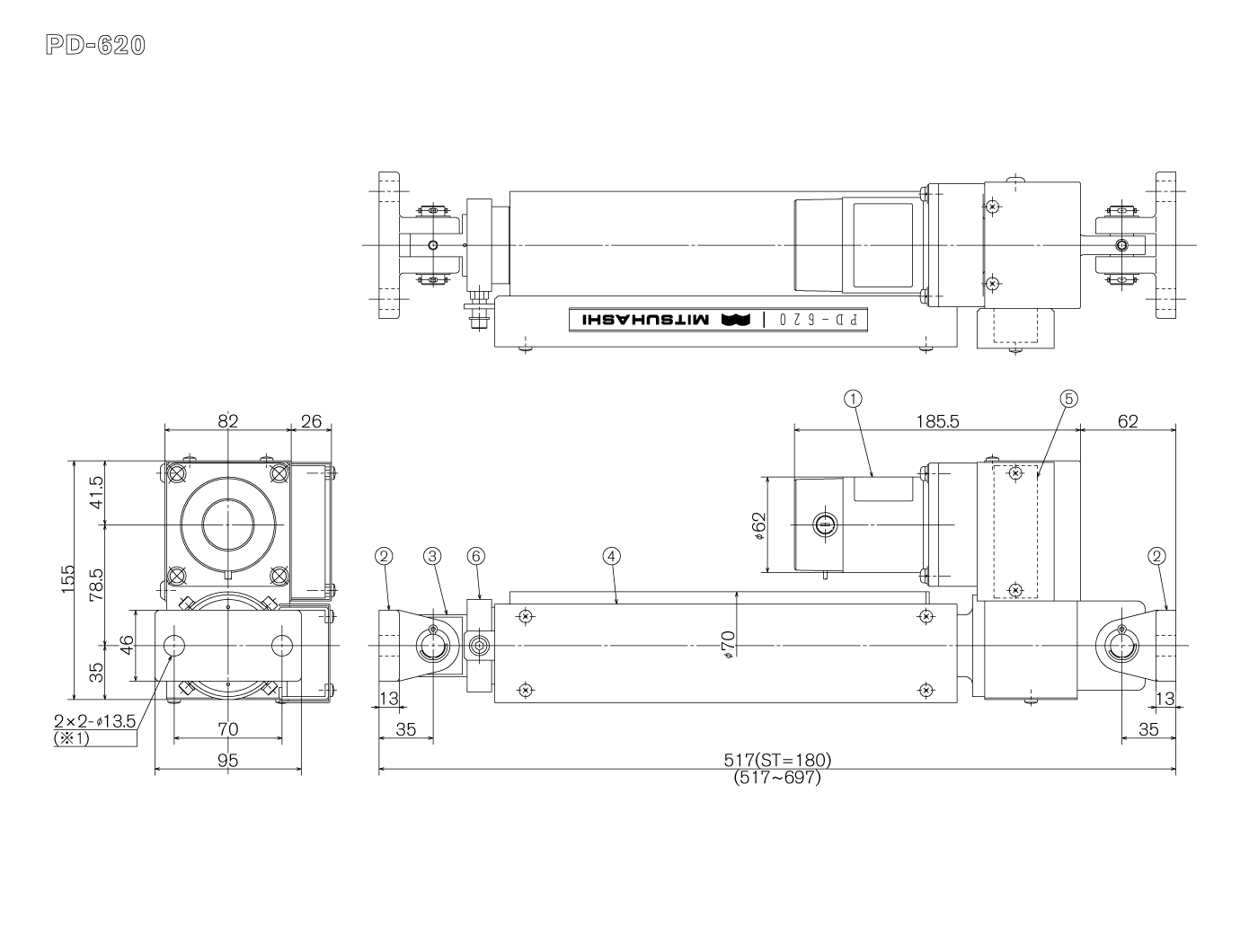

Drawing

①DC geared motor  ② Connector  ③ Slide rod ④ Switch unit ⑤ Terminal block ⑥Collar
※1: Mounting hole

Features

  • Long life and ease of maintenance and inspection
    Due to ball screws used in the drive mechanism, most of the parts are wear resistant. It has a long life and is easy to maintain and inspect.
  • Equipped with microswitch for center position detection
    By pushing the center stop switch on the control panel, the actuator may be set at center position in advance.

Specification

Thrust tolerance 372N(38kgf)
Mass tolerance 1266kg
Stroke 180mm
Driving speed 18mm/s
DC motor DC24V 1.2A
Mass 9kg
