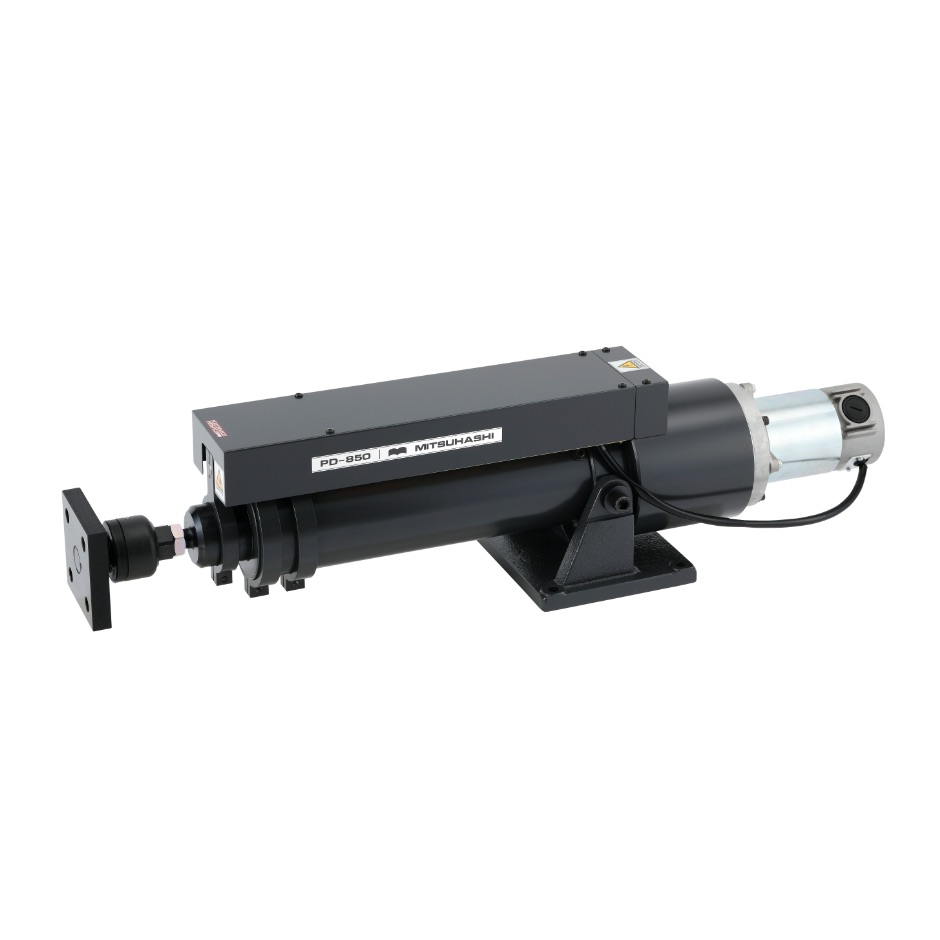

PD-850
Medium-size Actuator
- #Medium-size Actuator
An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 9400 kg or less.
Features
- Long life and ease of maintenance and inspection
Due to ball screws used in the drive mechanism, most of the parts are wear resistant. It has a long life and is easy to maintain and inspect. - Equipped with microswitch for center position detection
By pushing the center stop switch on the control panel, the actuator may be set at center position in advance.
Specification
| Thrust tolerance | 2744N（280kgf） |
|---|---|
| Mass tolerance | 9425kg |
| Stroke | 180mm |
| Driving speed | 13mm/s |
| DC motor | DC24V 6A |
| Mass | 36kg |
