PDM-610

Actuator

  • #Actuator

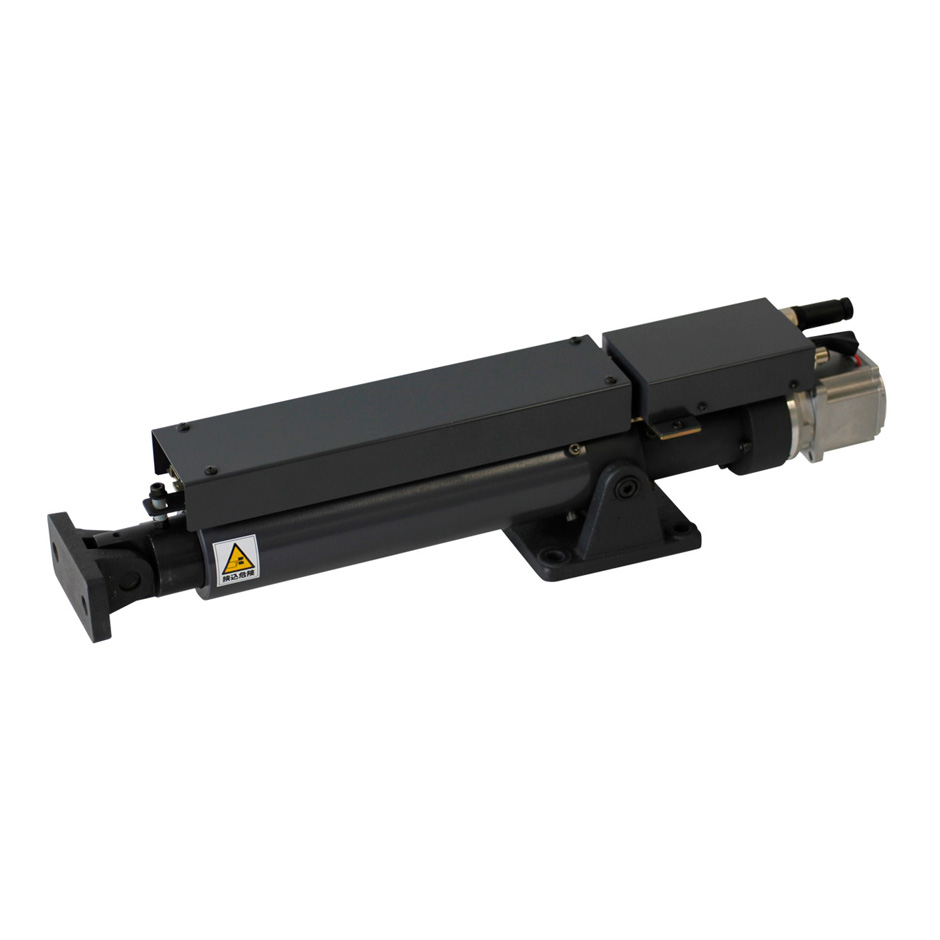

An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with G-series controller and sensor. It has a built-in brushless motor and is superior in maintainability and achieves high response and high precision. Mass tolerance is 1500kg.

PDM-610

Drawing

①Brushless DC geared motor 　②Connector　③Slide rod　④Switch unit　⑤Electric component box 　⑥Stand　⑦Motor power supply connector (accessory) 　⑧McBus connector (sold separately)
※1: Mounting hole 　※2: Mounting hole　※3: Power cable (non-included accessory)

Catalog

Features

  • Maintenance-free brushless DC motor is adopted.
  • Compared to the conventional PD series, a more speedy and precise alignment correction control is made possible.
  • Because only a connector is necessary to connect PEM-type controller and PSM-type sensor, the wiring job is made simple.

Specification

Thrust 1700N (173kgf)
Stroke 180mm
Driving speed 20mm/s
Mass 11kg
Power supply DC24V±20%
Consumption current 2.5A
Operating environment Temperature：0 – 50 ℃
Humidity：80%Rh or lower (no condensation)
Connection equipment Controller PEM-200、PEM-3000
Sensor PSM-type sensor
Power supply: Supplies through the accessory supply connector (please prepare your own cable).
CAN bus: Connect to the controller and sensor using a dedicated cable sold separately. Please refer to the PEM controller catalog for connection structure.
