DC Motor Driver

  • #DC Motor Driver

DC motor driver used in combination with preamplifier PE-700. It drives miniature actuators.

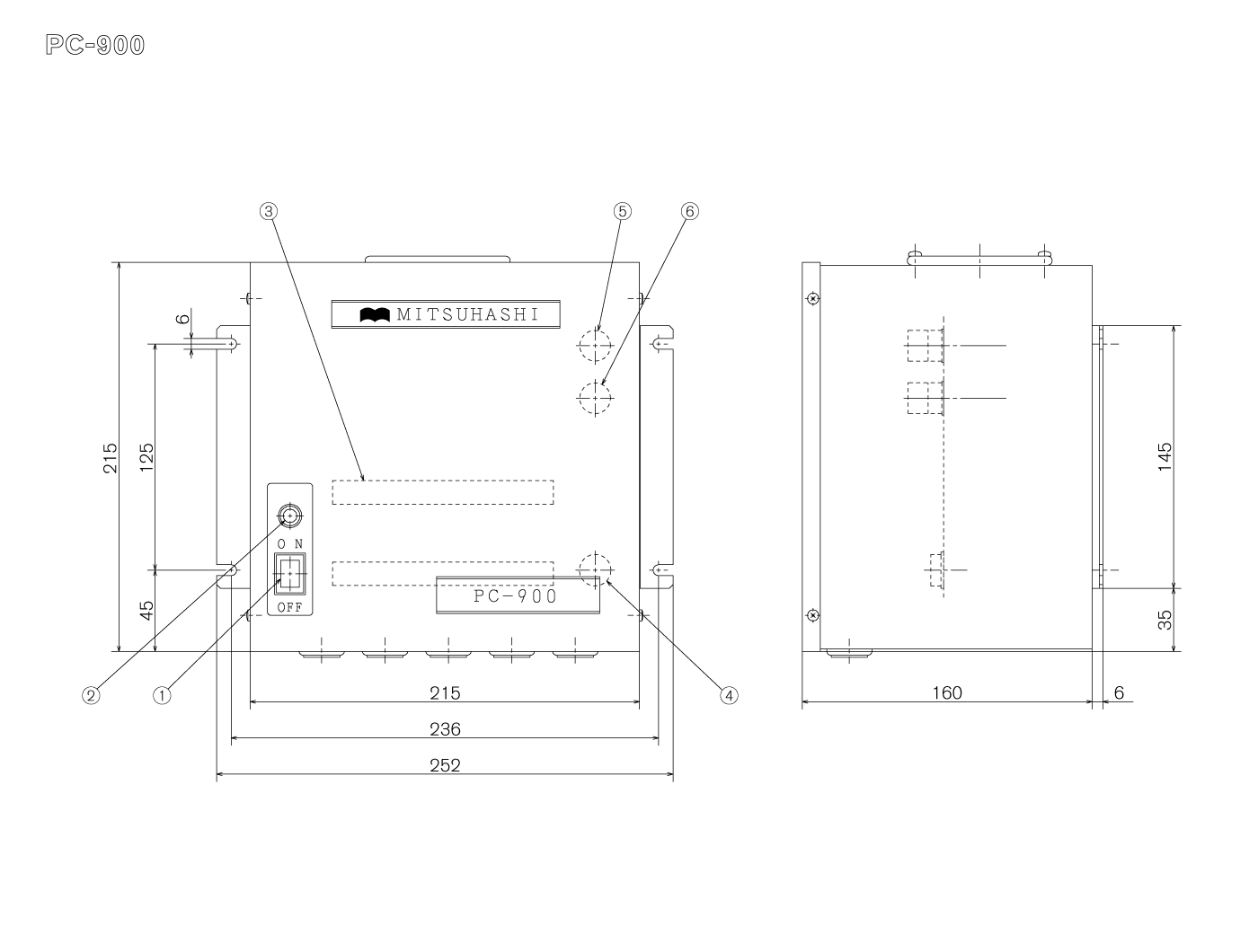

①Power switch  ②Power lamp ③External connection terminal ④ Control panel connector  ⑤Power fuse ⑥Motor fuse


  • Equipped with 2 operating modes
    There is an ON-OFF input mode and a mode to control the speed proportional to input voltage. For control proportional to input voltage, connection to PE-700 driver and detector is required.


Control system DC servo
Transistor drive system
Power supply Single-phase 200/220V 50/60Hz 1A
Control response Electrical response 0.01sec or less
Input PE-type preamplifier
Output DC24V 2A
Ambient temperature 0 – 50℃ (no condensation)
Alarm contact AC110V 0.3A, DC24V 1A (resistance load)
Mass 8kg
