PW-1000
Control Panel
- #Control Panel
Control panel for web alignment control. It can be connected to all Q-series detectors and the drive can use all roll guides and miniature actuators. It is normally equipped with I/O terminal to control operation mode selection with an external controller.

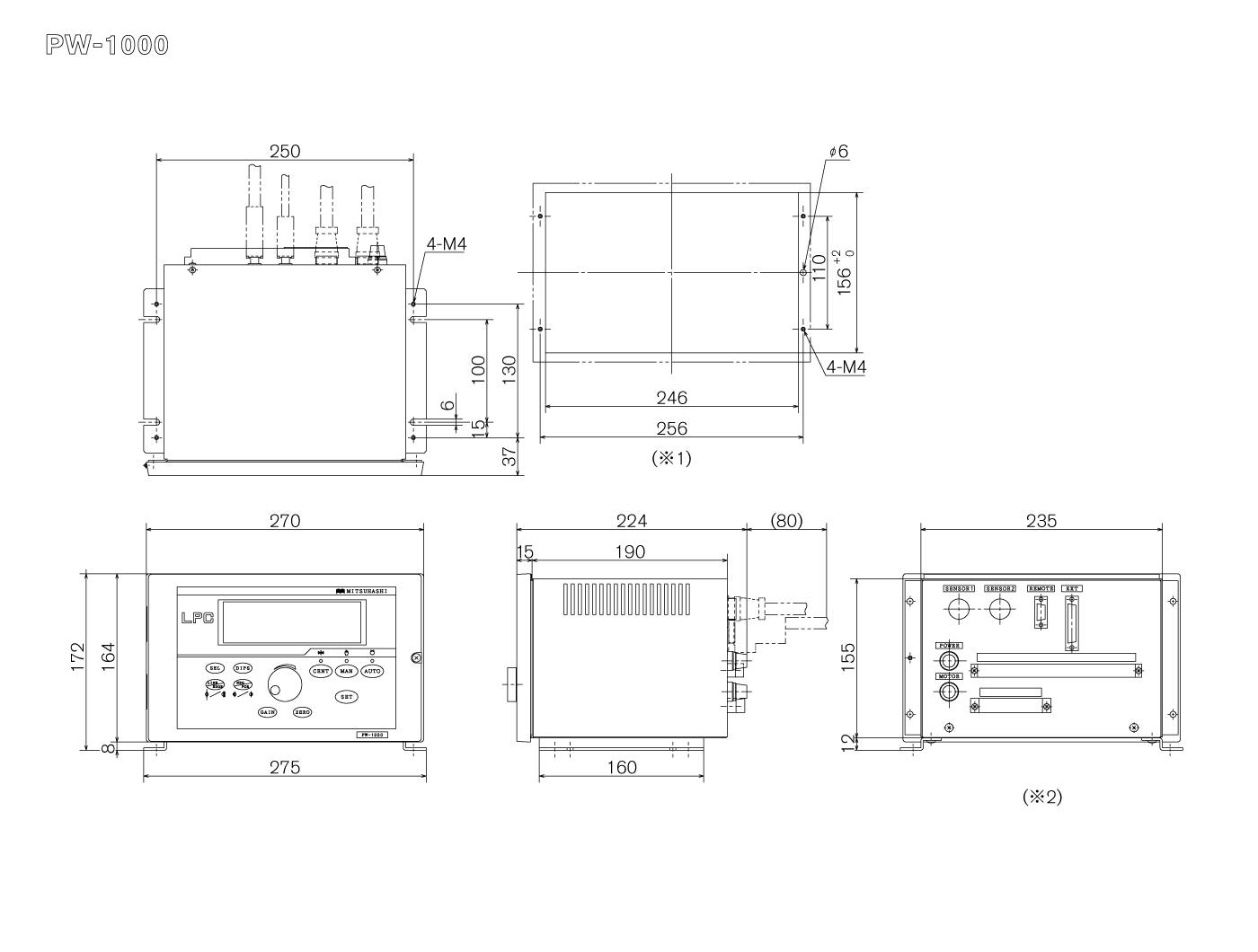

Drawing
Features
- Compatible with our standard detector
It can be used with our standard detector. It has a 2-system detector input and enables switching to and from windup and feed with 1 unit. In addition, it can switch as needed to the optimum detector for the web. - 3 bank memories are prepared
3 bank memories have been prepared for various settings. Each bank stores the detector in use, gain and zero setting. By switching banks for various types of webs, the optimum setting may be called. - Equipped with large LCD indicator (8 lines x 40 characters)
Operation status is clearly visible.
It is easy to adjust the setting for various uses.
General specification
| Power supply | Single-phase AC85V – AC264V Free-range power supply |
|---|---|
| Consumption power | Maximum 200VA |
| Mass | Approx. 5kg |
| Operating environment | Ambient temperature 0 – 40℃（no condensation) Humidity 80% RH or lower |
Function summary
| Detection input | 2 systems (different models may coexist) external analog input 2 systems |
|---|---|
| Adaptive detector | PS-261、PS-270、PS-1100、PS-300、PS-350、PS-400、PS-45、PS-450、PS-711、PS-800 |
| Adaptive drive |
・ＰＤ series PD-400, PD-400-75 PD-400-1/50, PD-710 PD-610, PD-620 PD-620-100, PD-650 PD-650S, ・All PG series ・All MR series |
| Memory configuraiton | System memory: 1 Bank memory: 3 banks Detection input channel, EDGE/LINE, POS/NEG, zero, gain, integral time, dead zone width, dead zone gain |
| External control input | Mode switching (manual, center, automatic), balance set, manual drive, bank switching |
| External control output | In operation, mode (manual, center, automatic), drive stroke end, bank switching response, comparator determination output (optional) |
| Optional features | Remote box・・・PT-1000 (sold separately) Comparator・・・factory option |
