  AIREX Air Shaft Both-end Support Type

  When air is inserted, many lugs (tabs) will protrude, and the core can be clamped.

•

  AIREX Air Shaft Cantilever Support Type

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.

•

  AIREX Stripe Shaft

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.

•

  AIREX Adaptor

  The AIREX adaptor is used for cores with different diameters when using the same AIREX shaft.

•

  AIREX Air Shaft Leaf Type

  When air is inserted, the leaf plate will protrude and the core can be clamped.

•

  AIREX Air Shaft with Rollers

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  A special roller unit is embedded along the outer periphery of the main body.

•

  AIREX Air Shaft Carbon Type

  When air is inserted, many lugs (tabs) will protrude, and the core can be clamped.

•

  AIREX Mechanical Shaft Screw Type

  With this high-precision shaft, the lugs are extended evenly in all directions by supplying power with the impact driver, and the core can be chucked without center run-out.

•

  AIREX Mechanical Shaft Cylinder Type

  With this high-precision shaft, the lugs are extended evenly in all directions by injecting air, and the core can be chucked without center run-out.

•

  AIREX Air Shaft Clean Type

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  The shaft with low dust generation is made possible due to special dustproof measures that have been taken to the air shaft and the lugs that are made with resin which makes them easier to slide.

•

  AIREX Air Shaft Stroke Adjustment Type

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  With this air shaft, fine adjustments of the rolled material position can be made while the rolled material is chucked.

•

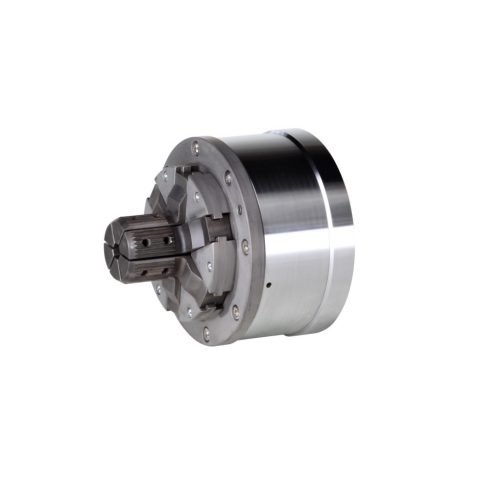

  AIREX Air Chuck

  The body of the air chuck is a large diameter air cylinder, and the tabs will protrude when the tapered parts at the tips are extruded with a large thrust. Therefore, the core can be securely chucked with a strong force.

•

  AIREX Air Shaft Hanger Type

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  This air shaft is for suspending the raw materials (scrolls) in the vertical direction and conveying.

•

  AIREX Mechanical Chuck

  This chuck is for shaftless unwinding and winding devices.
  After setting the core, the thrust when the chuck mounting part of the device moves forward protrudes the lugs, and chucks the core.

•

  AIREX UC Chuck

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.

•

  Roll Handling Shaft

  The handling of rolled products can be done “anywhere,” “easily,” “assuredly” and “gently on the products.”

•

  AIREX Mechanical Shaft Screw Type (for vacuum environments)

  With this high-precision shaft, the lugs are extended evenly in all directions by supplying power with the impact driver, and the core can be chucked without center run-out.

•

  AIREX Air Shaft Doughnut Type

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  This air shaft is a hollow cylindrical shape.

•

  AIREX Clean Chuck

  When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
  Dust generation from the inside is prevented due to the special structure.
