Large Actuator

  • #Large Actuator

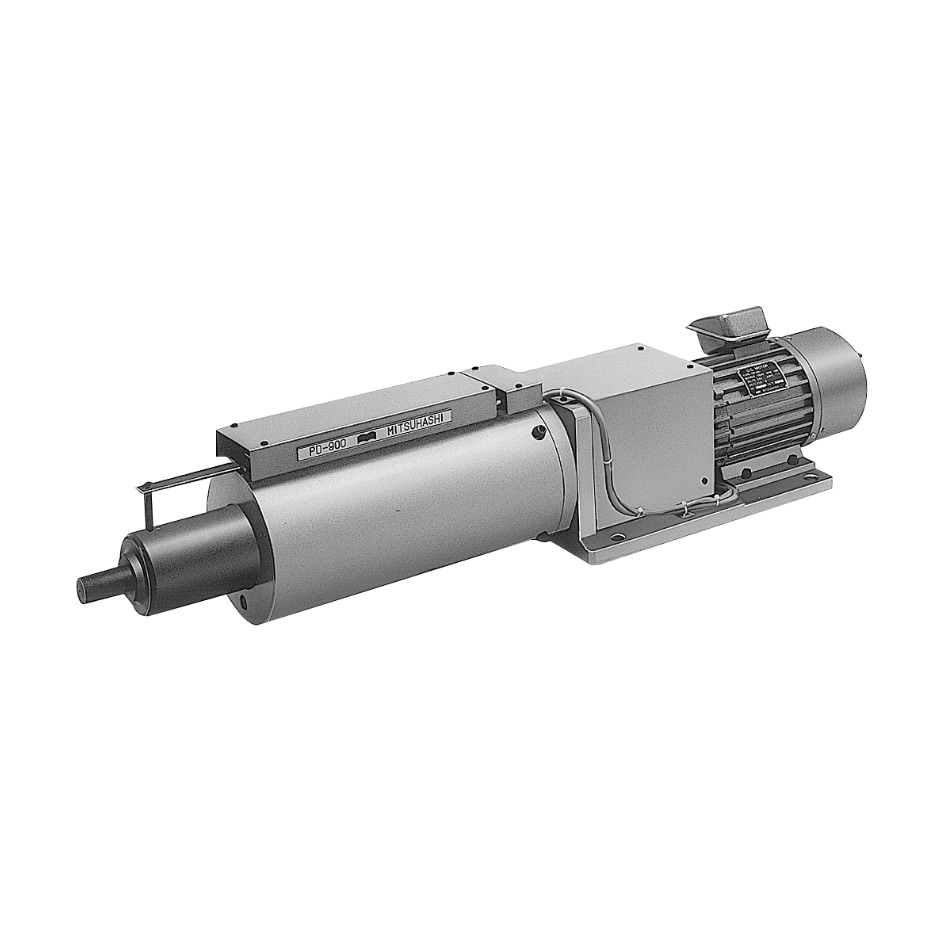

An actuator which is used for alignment control of the unwind and windup part of the web. It is used in combination with Q-series control panel and detector. It is used for devices with total weight of 13300 kg or less.



① DC geared motor  ②Floating joint ③Slide rod ④Switch unit ⑤Terminal block ⑥Motor terminal box
※1: Mounting hole ※2: Hole pitch


  • Long life and ease of maintenance and inspection
    Due to ball screws used in the drive mechanism, most of the parts are wear resistant. It has a long life and is easy to maintain and inspect.
  • Equipped with microswitch for center position detection
    By pushing the center stop switch on the control panel, the actuator may be set at center position in advance.


Thrust tolerance 3920N(400kgf)
Mass tolerance 13300kg
Stroke 180mm
Driving speed 16mm/s
DC motor DC24V 11A
Mass 85kg
