PTM-100

Remote Box

  • #Remote Box

Remote operation box for G-series controllers. It is used for operation near a detector or an actuator.

PTM-100

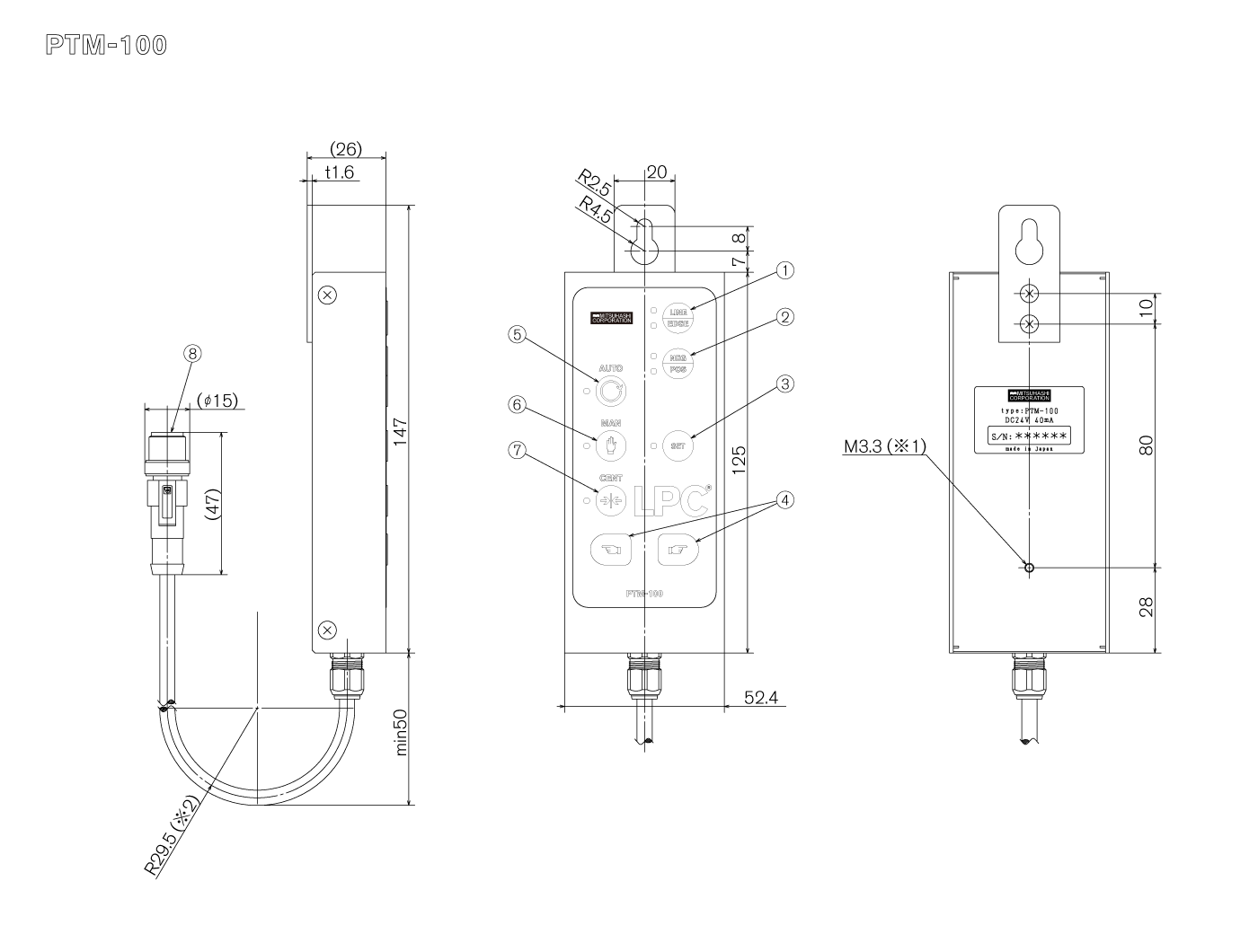

Drawing

①Detection target selector key　② Control polarity selector key　③SET key　④ Manual operation key　⑤AUTO key　⑥MAN key ⑦CENT key　⑧ Peripheral connector (cable length 3m) ※1: Maximum screw-in depth 10 ※2: Minimum bending radius

Catalog

Features

  • It is suited for operation near a detector or an actuator.

Specification

Power supply DC24V±20％（supplied by CAN bus)
Consumption current Maximum 40mA
Mass Approx. 400g (including cable)
Operating environment Temperature：0 – 40 ℃, Humidity: 80%Rh or lower (no condensation)
