AIREX Adaptor

The AIREX adaptor is used for cores with different diameters when using the same AIREX shaft.

AIREX Adaptor

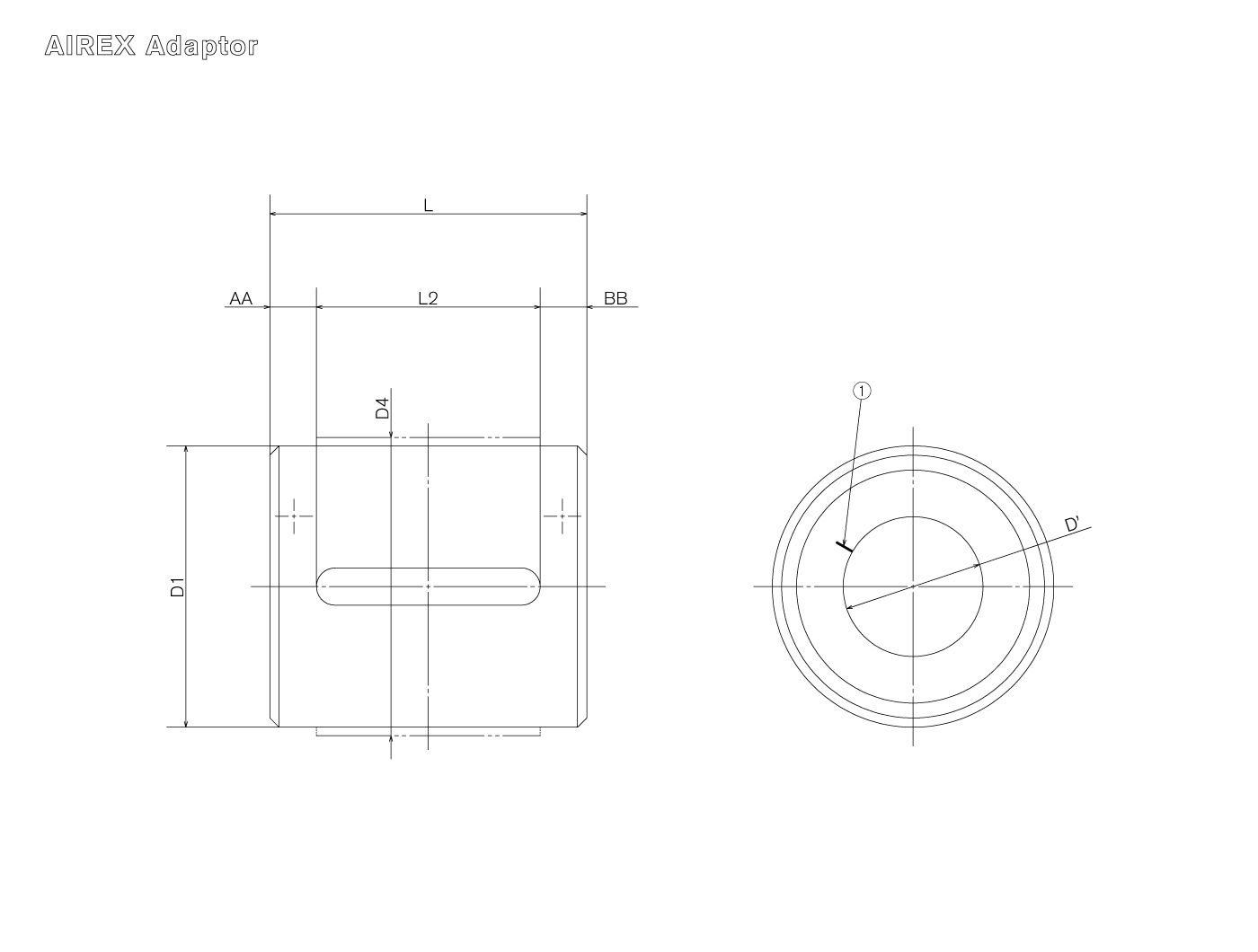

Drawing

(1) Phase alignment groove (red color)
AA: Body edge to lug　BB: Body edge to lug　
D1: Body outer diameter　D4: Lug expanded diameter　D’: Shaft outer diameter
L: Full length　L2: Lug length

Catalog

Features

  • Supports cores with different diameters without replacing the shaft.
  • The lug extension operation of the AIREX shaft to be mounted is used for lug extensions. A power supply is not required for the adaptor.
