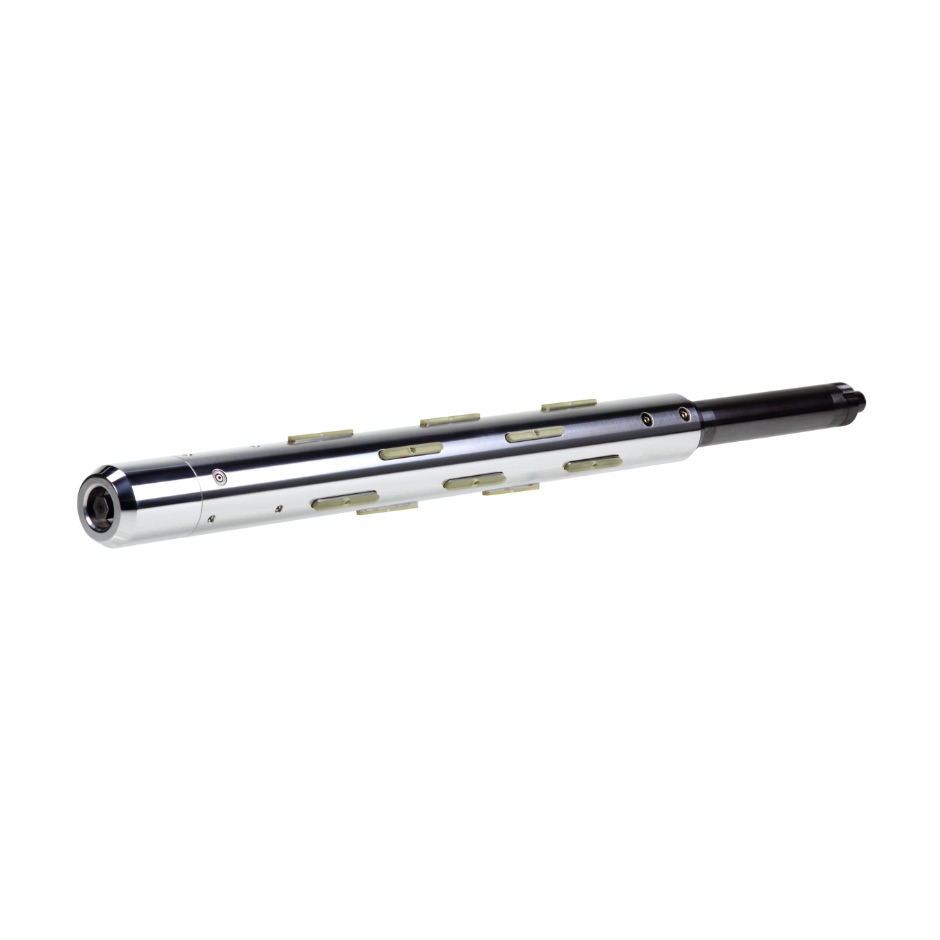

AIREX Mechanical Shaft Screw Type
With this high-precision shaft, the lugs are extended evenly in all directions by supplying power with the impact driver, and the core can be chucked without center run-out.
Drawing
(1) Hex screw head for wrench (A) (2) Hex screw head for wrench (B) (3) Hex screw head for wrench (C) (4) Hex screw head for wrench (D)
A: Journal length AA: Body edge to lug AC: Distance of bearing to shaft body B: Journal length BB: Body edge to lug BC: Distance of bearing to shaft body
D1: Body outer diameter D2: Bearing diameter D3: Bearing diameter D4: Lug expanded diameter D5: Core inner diameter D6: Core outer diameter D7: Material roll diameter
L: Full length L1: Shaft body length L2: Lug to lug L3: Distance between bearings L4: Material width L5: Core width L6: Body edge to sheet center
(1) Hex screw head for wrench (A) (2) Hex screw head for wrench (B) (3) Hex screw head for wrench (C) (4) Hex screw head for wrench (D)
A: Journal length AA: Body edge to lug AC: Distance of bearing to shaft body BB: Body edge to lug
D1: Body outer diameter D2: Bearing diameter D4: Lug expanded diameter D5: Core inner diameter D6: Core outer diameter D7: Material roll diameter
L: Full length L1: Shaft body length L2: Lug to lug L3: Distance between bearings L4: Material width L5: Core width L6: Body edge to sheet center
Catalog
Features
- The lugs are extended evenly in all directions by supplying power with the impact driver, and the core can be chucked without center run-out.
- Rolled materials with a large mass can be clamped with this high load shaft.
- When using the impact driver, the lugs can be easily expanded.
