AIREX Air Shaft Stroke Adjustment Type
When air is inserted, many lugs (tabs) will protrude from inside the shaft, and the core can be clamped.
With this air shaft, fine adjustments of the rolled material position can be made while the rolled material is chucked.

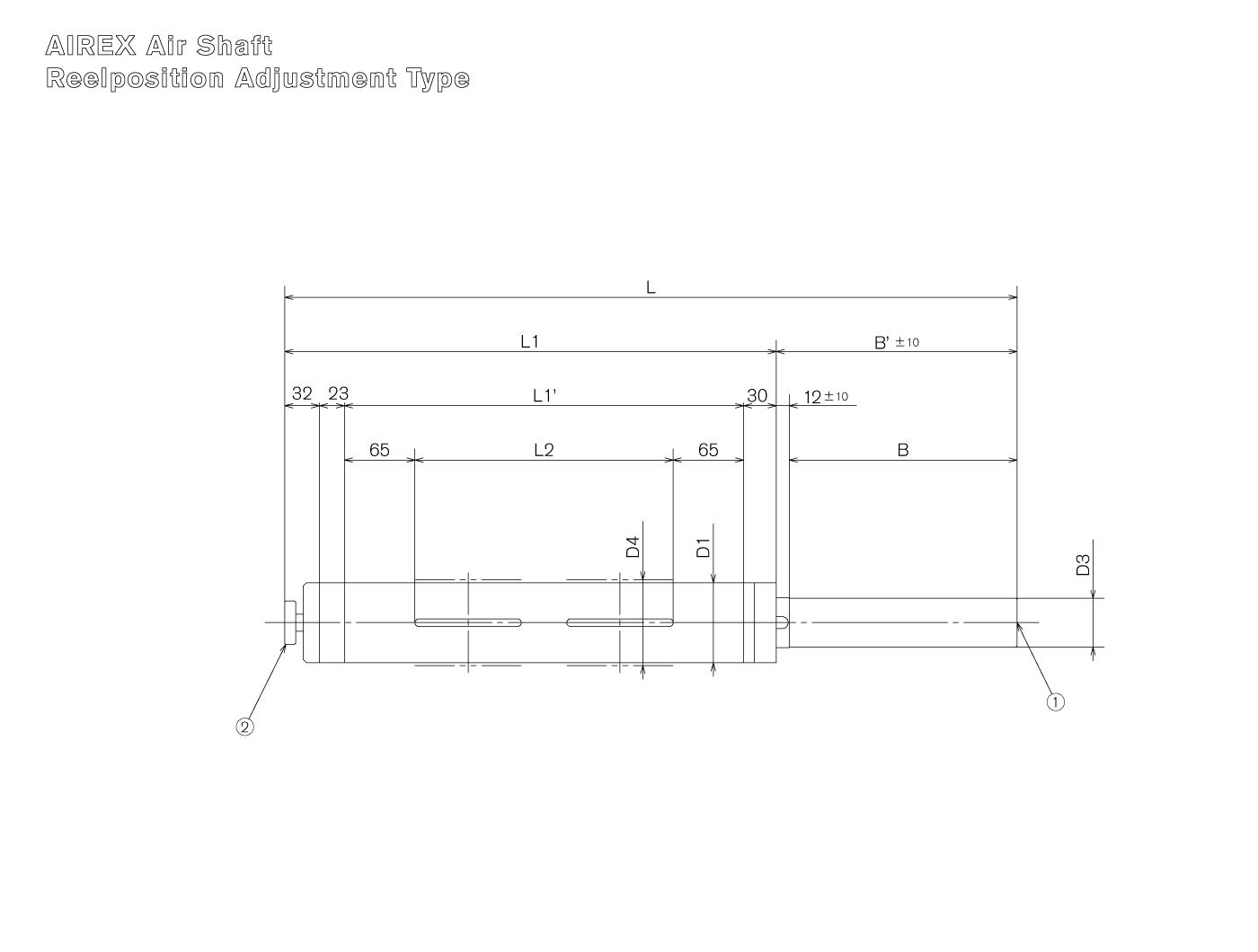

Drawing
(1) Air inlet (2) Stroke adjustment knob
A: Journal length A’: Journal length B: Journal length B’: Journal length
D1: Body outer diameter D2: Bearing diameter D3: Bearing diameter D4: Lug expanded diameter
L: Full length L1: Shaft body length L1': Shaft body length L2: Lug to lug
(1) Air inlet (2) Stroke adjustment knob
B: Journal length B’: Journal length
D1: Body outer diameter D3: Bearing diameter D4: Lug expanded diameter
L: Full length L1: Shaft body length L1': Shaft body length L2: Lug to lug
Catalog
Features
- Fine adjustments of the rolled material position can be made while the rolled material is chucked.
Depending on the type, the position can be adjusted even during operation.
