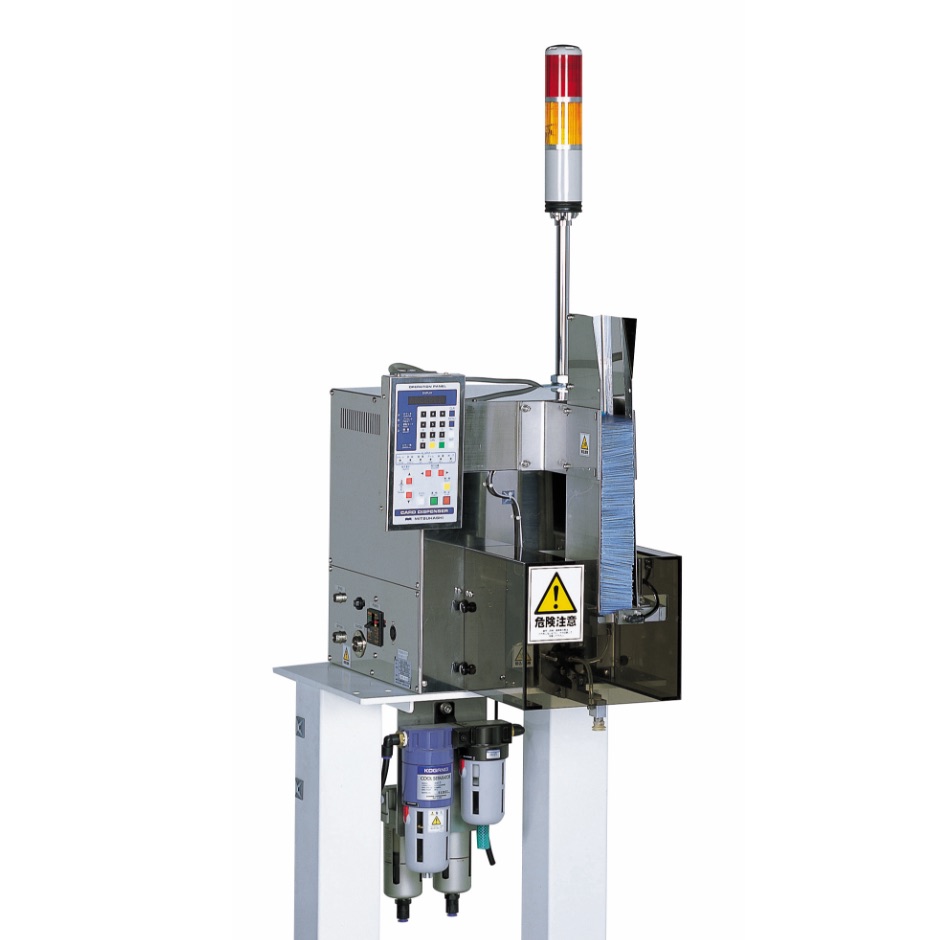

CD-920
Rotary type card dispenser
This device loads various cards, cardboard, trays and lids onto a fixed position of the conveyor line.
Stable motion trajectory and smooth movement gentle to cards are realized with our original cam rack mechanism.
![CD-920](https://www.mitsuhashi-corp.co.jp/images/en/uploads/sites/2/2020/05/2024_CD-920.jpg)
Labor saving effects
Manual work
approx. 30 pouches/minAfter installing the device
approx. 200 pouches/min
Features
- Equipment capacity: 200 pouches/min
- Automatically loads products by synchronizing the device with the loading signal from packaging machines, etc.
- Equipped with our original cam rack mechanism. A rotary-type twin arms are adopted for the suction arms. Higher speed, stable motion trajectory and smooth movement gentle to cards are realized.
Specification
Equipment capacity | 200 pouches/min (maximum) *The maximum capacity will vary depending on specifications such as product shape and hardness. |
---|---|
Work piece specification |
Width 30 – 70mm Length 30 – 100mm |
Power supply | 3φ AC200/220V 50/60Hz 1.0kVA |
Weight | Approx. 40kg |
Air source | 0.5MPa 210L/min (ANR) dry air |
