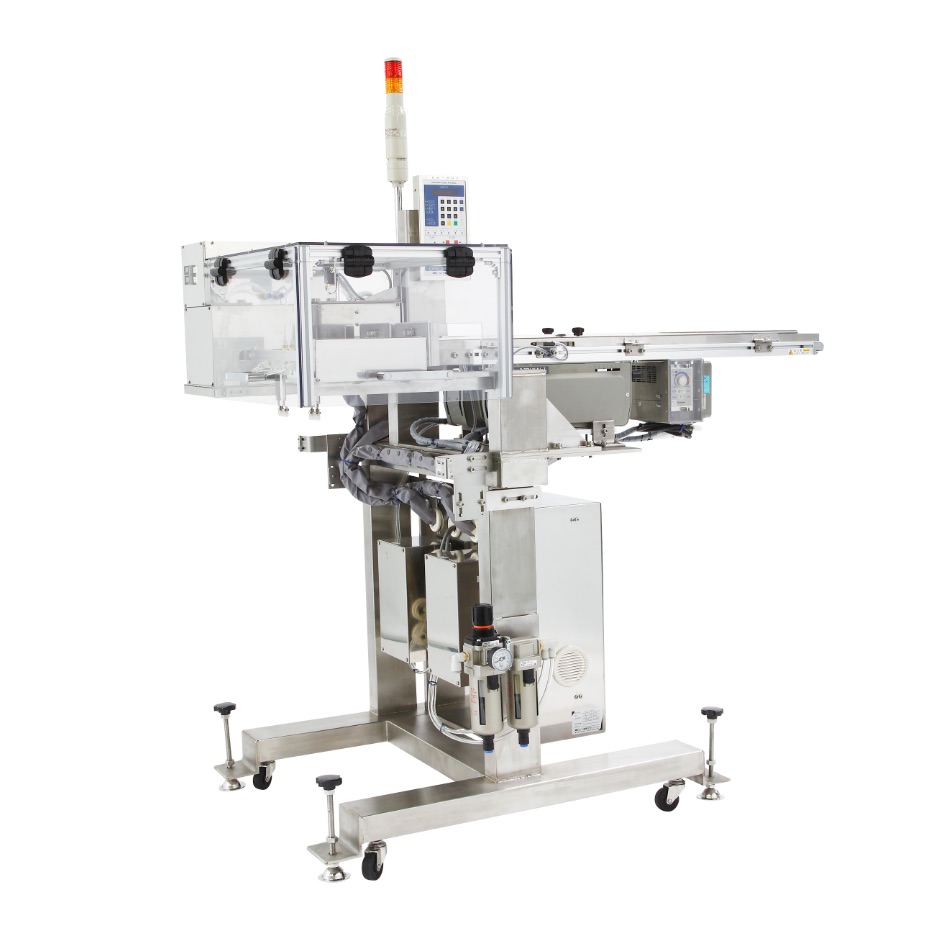

CD-870

Card dispenser

This device loads various cards, cardboard, trays and lids onto a fixed position of the conveyor line.
Stable motion trajectory and smooth movement gentle to cards are realized with our original cam rack mechanism.

CD-870

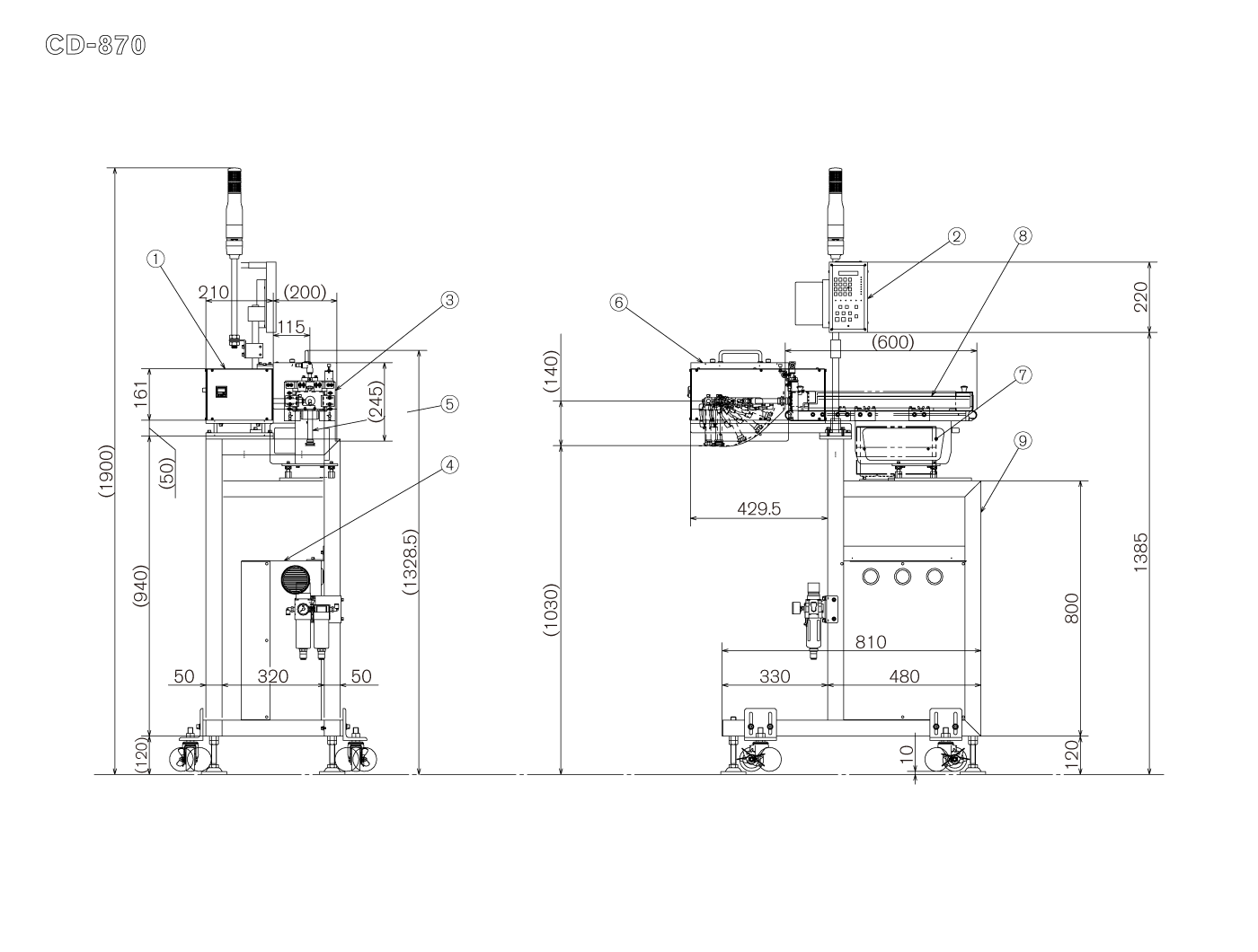

Drawing

(1) CD-870　(2) Control panel　(3) Cutting frame　(4) Control box　(5) Suction arm　(6) Safety cover　(7) Ejector box　(8) Supply conveyor　(9) Frame

Catalog

Labor saving effects

Manual work
approx. 30 pouches/minAfter installing the device
approx. 120 pouches/min

Features

  • Equipment capacity: 120 pouches/min
  • Automatically loads products by synchronizing the device with the loading signal from packaging machines, etc.
  • The scope of application is expanded to cardboard, trays, lids and flat pouches by adopting a horizontal stocker.
  • The conveyor belt type stocker enables a large amount of work pieces to be stocked.
  • Stable motion trajectory and smooth movement gentle to cards are realized with our original cam rack mechanism.

Specification

Equipment capacity 120 pouches/min (maximum)
*The maximum capacity will vary depending on specifications such as product shape and
Work piece specification Width　20 – 200mm
Length　30 – 200mm
Power supply 3φ AC200V 50/60Hz 1.0kVA
Weight Approx. 50kg
Air source 0.5MPa　110Ｌ/min (ANR) dry air
