Noodle feeder

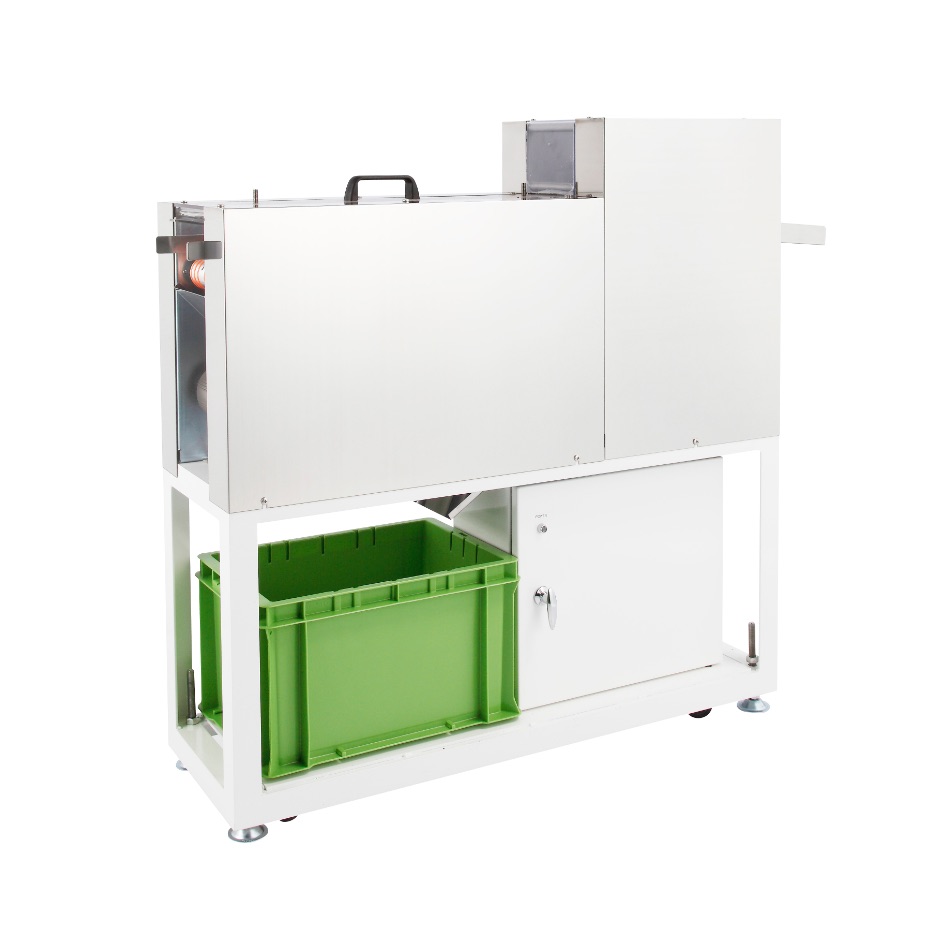

This is a device to load dry noodles such as ramen noodles onto a packaging machine.

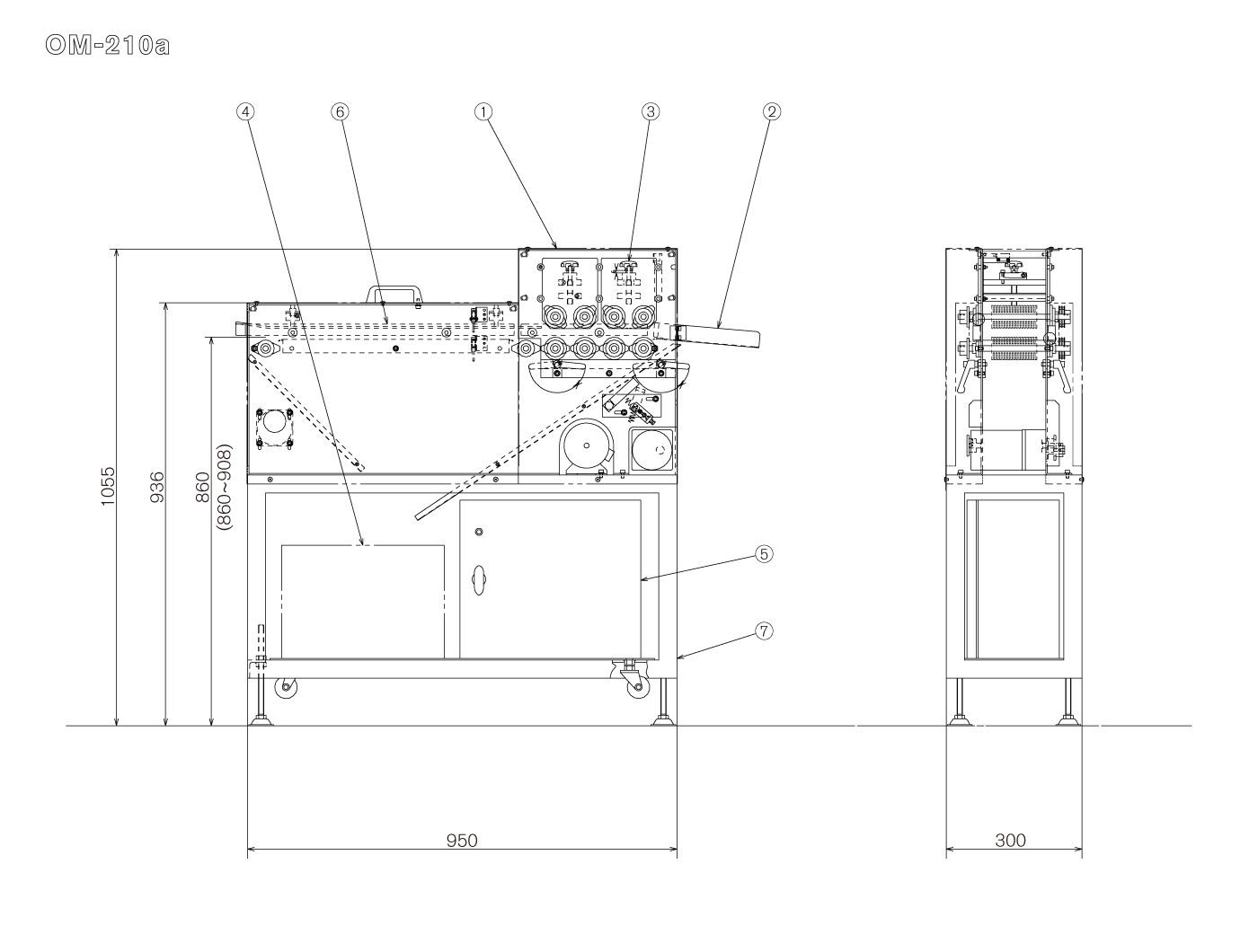

(1) OM-210 a (2) Loading guide (3) Up/down handle (4) Powder tray (5) Control unit (6) Transport conveyor unit (7) Frame

Labor saving effects

Manual work
approx. 30 pouches/min
After installing the device
approx. 200 pouches/min


  • In pursuit of a smaller size and high speed, a compact and easy-to-use noodle loading machine is achieved.
  • Easy connection to the packaging device. Operation is also made easy.
  • Automatic loading is made possible by easily synchronizing the feeder with loading signals from the packaging device.


Feeding capacity 200 pouches/min (maximum)
Noodle size 130mm×130mm
Thickness: 30mm (maximum)
Power supply 1Φ AC200/220V 50/60Hz 0.7kVA
Weight Approx. 50kg
