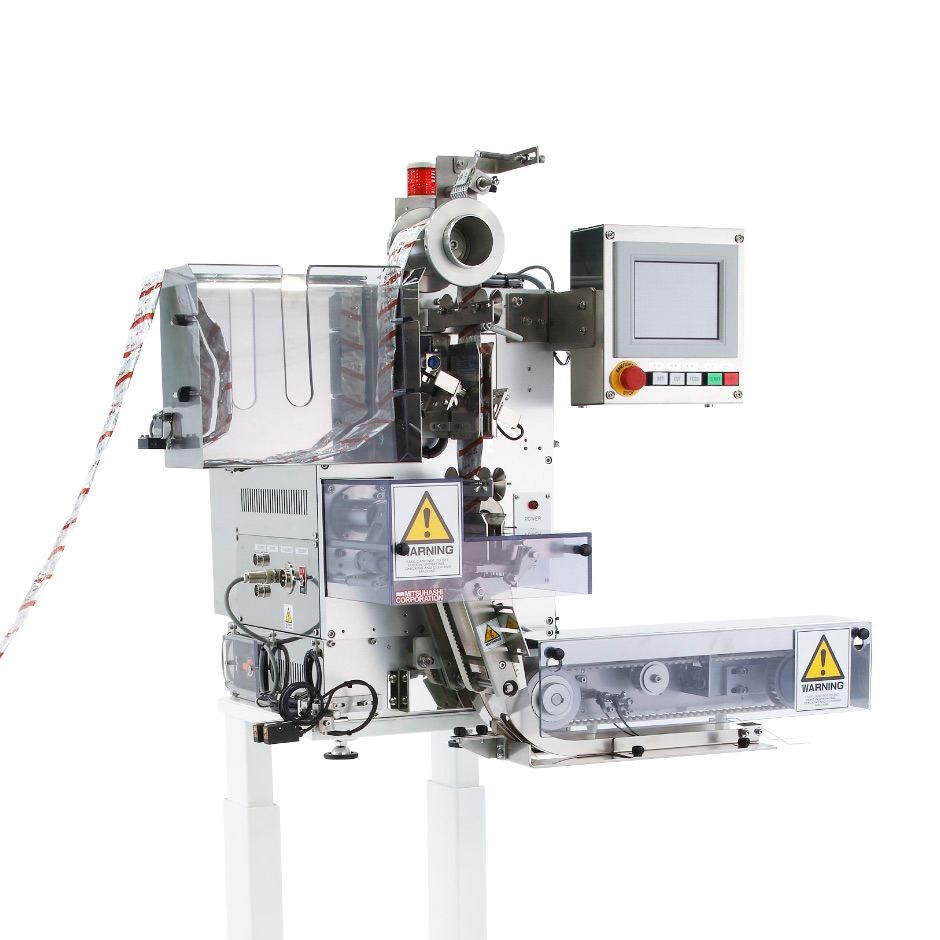

KD-920-OH

Pouch dispenser with fixed-position loading device

The device consistently cuts continuous packaging pouches into one pouch (multiple pouch units are also possible) at a time, and loads them by automatically following the packaging device’s conveyor speed. The device can be used for various types of pouches including powders, drying agents, oxygen absorbers and liquids.

KD-920-OH

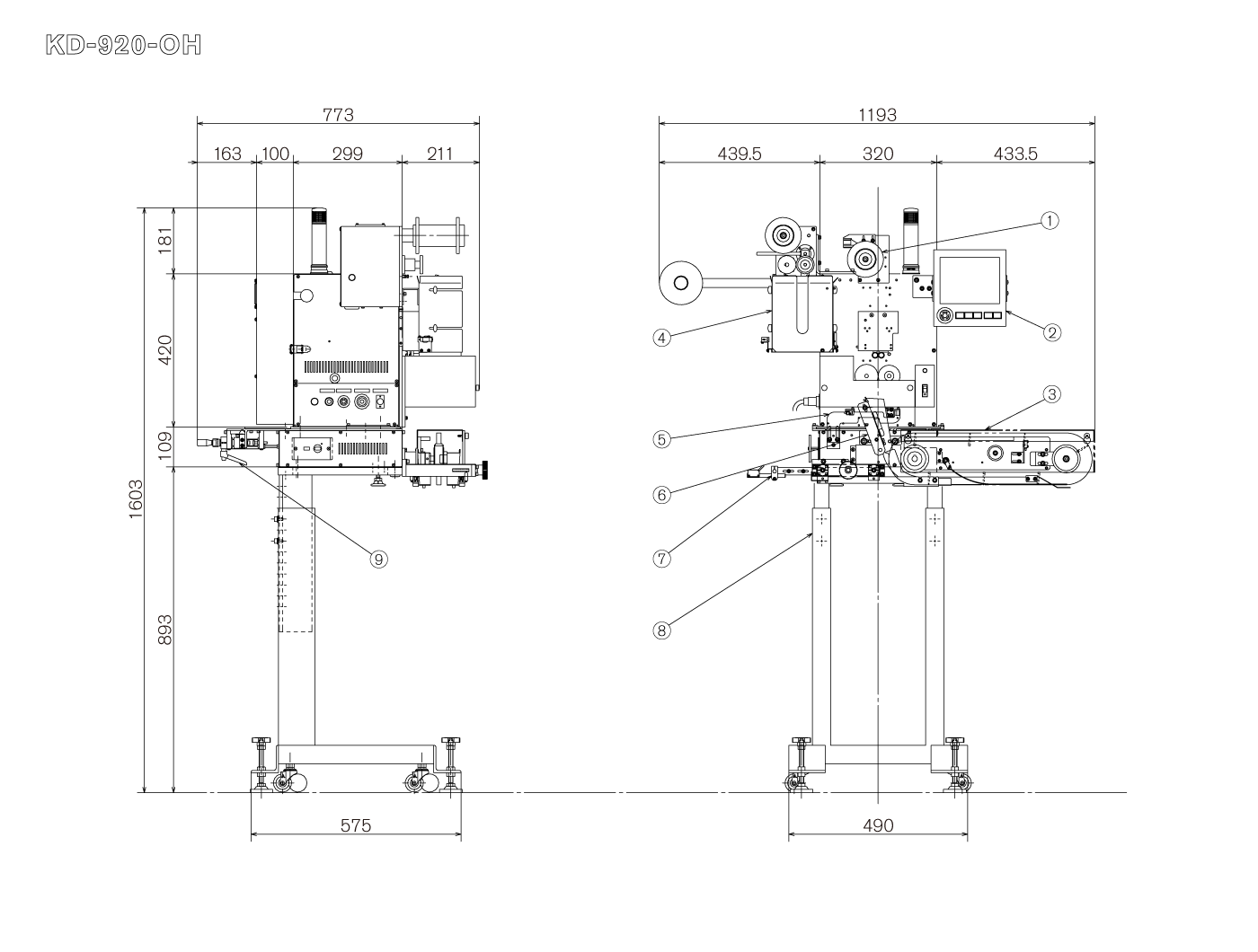

Drawing

(1) KD-920　(2) Control panel　(3) Fixed position loading unit: OH-100 (4) Feed unit (optional)　(5) Miss-cut prevention sensor　(6) Chute with automatic discharge function (optional)　(7) Noodle detection unit (optional)　(8) Frame　(9) Front and rear slide unit (optional)

Catalog

Features

  • Pouches are loaded by automatically following the packaging device’s conveyor speed using a conveyor with an overhead-type attachment.
  • Even when the conveyor transport speed of the packaging device changes, the pouch loading position will remain fixed.
  • By using a conveyor with an overhead-type attachment, pouches can be loaded without applying stress.
