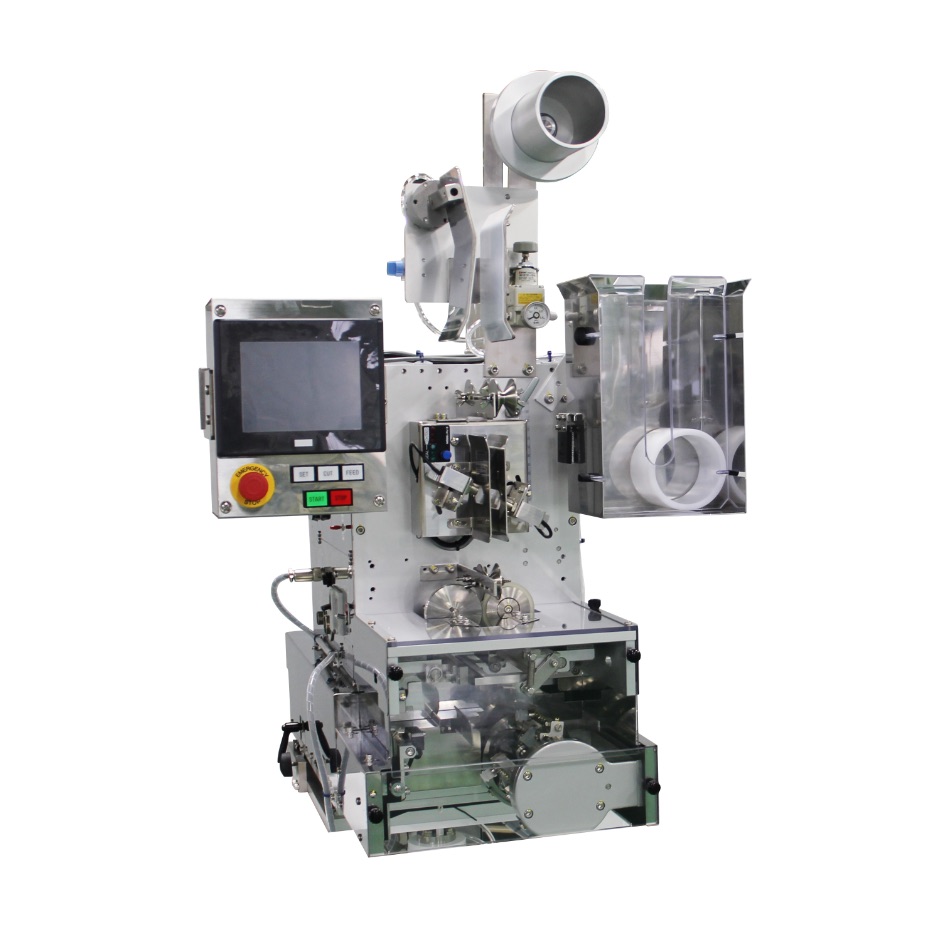

KD-820&LV-1000
Adsorption-type pouch dispenser
The device consistently cuts continuous packaging pouches into one pouch (multiple pouch units are also possible) at a time, and loads them by automatically following the packaging device’s conveyor speed. The device can be used for various types of pouches including powders, drying agents, oxygen absorbers and liquids.
![KD-820&LV-1000](https://www.mitsuhashi-corp.co.jp/images/en/uploads/sites/2/2020/05/PACK_005_KD-820LV-1000.jpg)

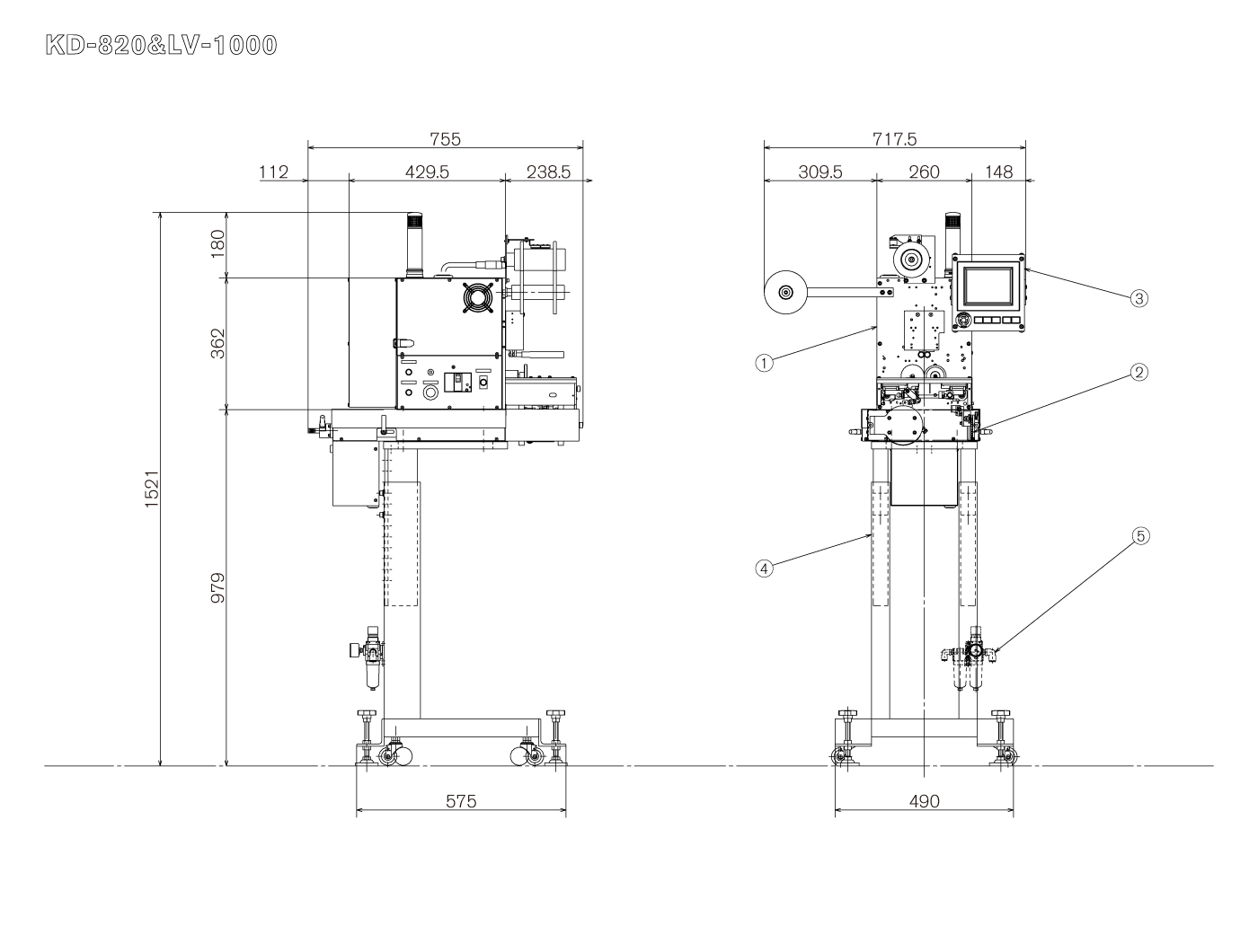

Drawing
Labor saving effects
Manual work
approx. 30 pouches/minAfter installing the device
approx. 250 pouches/min
Features
- Feeding capacity: 250 pouches/min
- The suction arm rotates, making high-speed loading possible in an effortless manner. Because pouches are loaded by automatically following the line speed of the packaging device, misalignment is significantly reduced compared to our conventional LV-200 device. (*An encoder unit is required)
- Pouches with undesirable creases or curls are simultaneously pinched/adsorbed and cut with a guide to prevent cutting errors due to such irregularities.
- By combining this device with hot melt coating equipment or the TM-200 (double-sided tape applicator,) attachment to packaging film can be performed accurately.
Specification
Feeding capacity | 250 pouches/min (maximum) *The longer the pouch length is, the lower the capacity will become. *The maximum capacity will vary depending on the conditions of the packaging materials and contents. |
---|---|
Pouch specification |
Width 30 – 100mm Length 35 – 90mm *1 Thickness 1 – 10mm |
Power supply | 3φ AC200V 50/60Hz 1.5kVA |
Weight | Approx. 50kg(KD-820 +LV-1000) Approx. 37kg (vacuum pump) |
Air source | 0.5MPa 80L/min(ANR) |
*Adsorption may be difficult depending on the pouch shape. Please contact us for details.
