CS-300

Pouch stocker

This device aligns and packs into boxes pouches that are cut into single unit or continuous packages in multiple units with a filling/packaging machine.

CS-300

Drawing

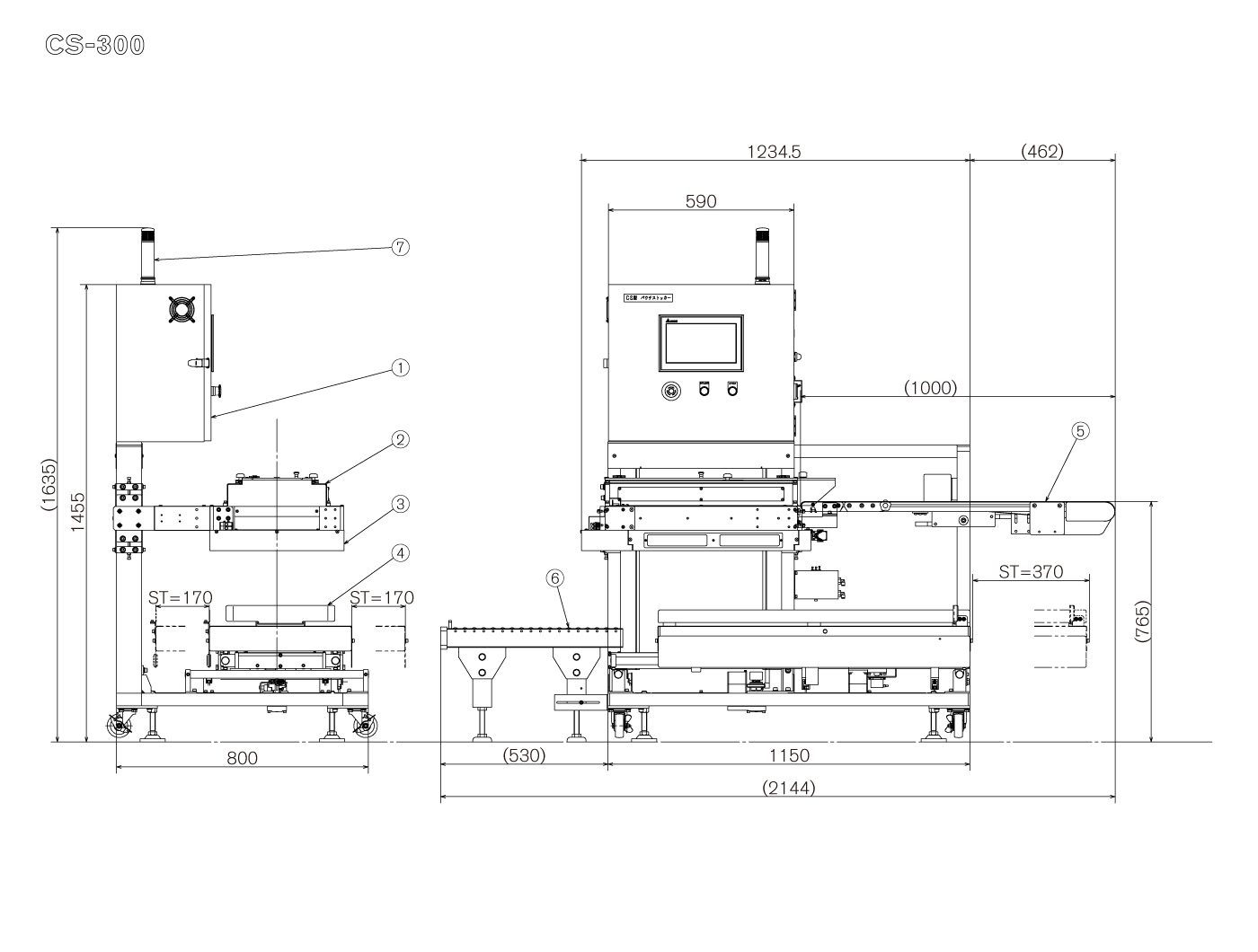

(1) Control box 　(2) Fixed position loading unit 　(3) Two-stage shutter unit 　(4) Dolly part 　(5) Transport conveyor unit (optional) 　(6) Discharge roller conveyor (optional) 　(7) Tower lamp (optional)　※1. Length of conveyor　※2. Height of conveyor

Catalog

Labor saving effects

Manual work
approx. 20 pouches/minAfter installing the device
approx. 240 pouches/min

Features

  • Equipment capacity: 240 pouches/min
  • An AC servo motor drive is adopted for the shutter rotation. Quiet work environment is maintained despite the high-speed operation.
  • Easy-to-slide embossed plate is adopted for shutters.
  • A two-stage shutter system is adopted. The pouches can be counted continuously without temporarily suspending supply when switching boxes.
  • Equipped with a 10.0-inch color touch panel
    Operation is made extra easy.
  • Special shapes are adopted to rails and wheels of the cart for smooth movement.

Specification

Capabilities 240 sachets/min (max.)
*Sachet Length 50mm, Capacity is 12m/min approx
Pouch specification Width　　65 – 150mm
Length　480mm(Continuous Sachets Length)
Thickness　　10mm (max.)
Box dimensions Length　500mm(max.)
Width　450mm (max.)
Height　290mm (max.)
Boxed weight Max. 15kg
Power 3φ　AC200V 50/60Hz 1.0kVA
Machine weight (Main Unit) Approx. 100kg
Air supply 0.5MPa 20ℓ/min (ANR) dry air
*Equipment capacity depends on the requested specifications.
