CDR-100

Rotary type card dispenser

This device loads various cards and cardboard by automatically following the packaging machine's conveyor speed.

CDR-100

Drawing

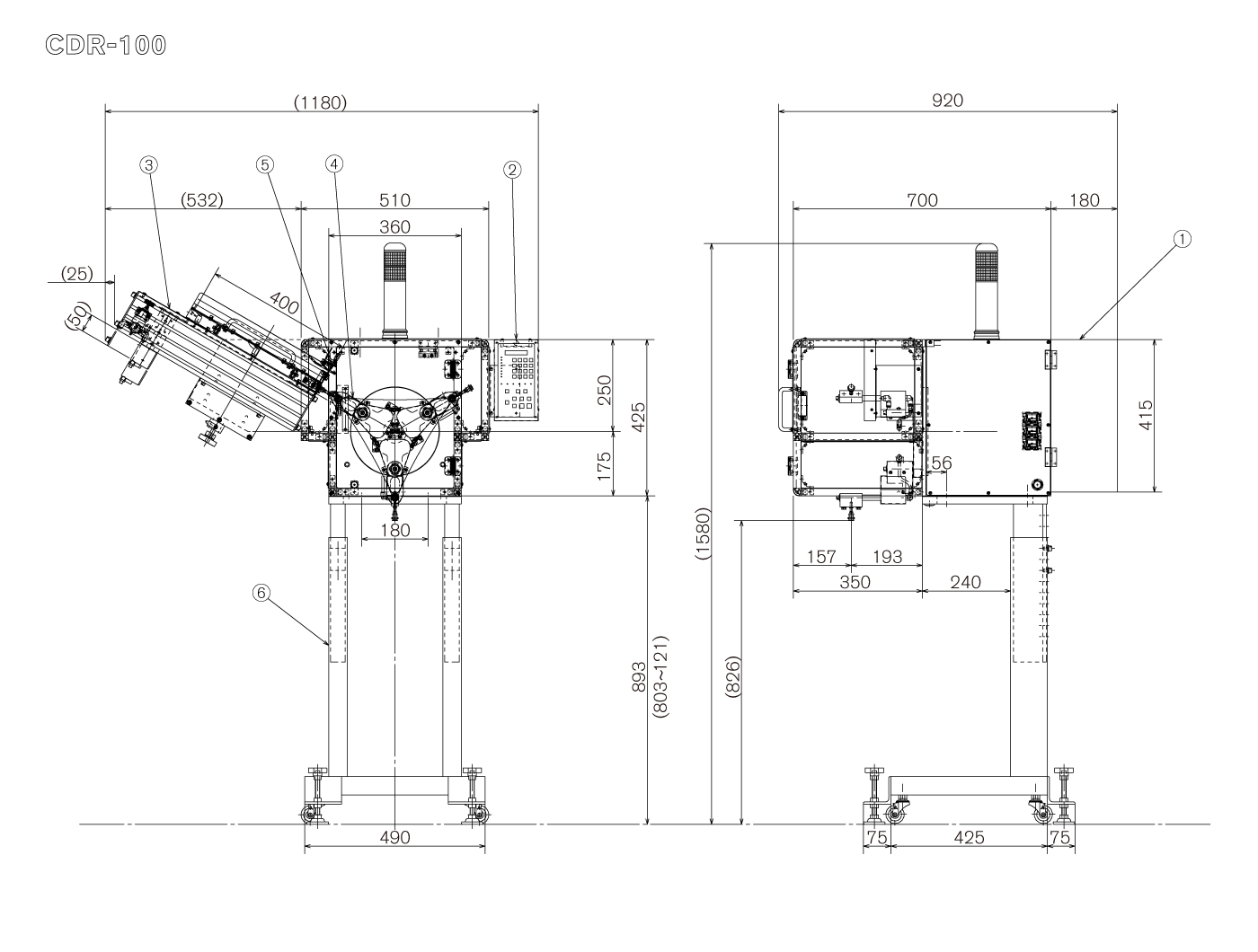

(1) CDR-100 (2) Control panel (3) Stocker (4) Suction arm (5) Cutting unit (optional) (6) Frame

Labor saving effects

Manual work
approx. 30 pouches/min
After installing the device
approx. 300 pouches/min

Features

  • Equipment capacity: 300 pouches/min
  • A rotary-type suction arm is adopted. Air space is created between work pieces to separate them, improving the reliability of loading the pieces compared to conventional devices. Damage due to separating tabs is reduced with the pulling movement in a sliding manner along the surface.
  • Extra high speed is achieved with the rotary-type continuous operation mechanism.
    *Items with depth such as trays are not applicable as pouches are rotated and pulled out.

Specification

Equipment capacity 300 pouches/min (maximum)
*The maximum capacity will vary depending on specifications such as product shape and hardness.
Work piece specification Width  30 – 100 mm
Length 30 – 100 mm
*Plate form drying agents, plastic cards, soft cards *1
Power supply 3 φ AC200V 50/60Hz 1.5kVA
Weight Approx. 110kg
Air source 0.5MPa 220L/min (ANR) dry air
*1. Items requiring large pulling stroke such as trays are not applicable as rotation method is adopted for pulling.
